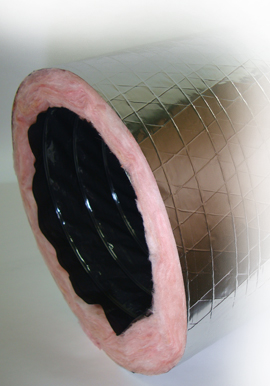

Mechanical Systems Insulation - HVAC / Ductwork

Mechanical Systems Insulation - HVAC / Ductwork

Design for condensation control and efficiency.

Owens Corning Air Handling Systems offer products that help control condensation and efficiently manage airflow. Click on the button below to get more detail on specific duct solution products, or click on the menu to the right for product applications.

Fibrous Glass Ducts - Thermal / Acoustical Insulation

Fibrous Glass Ducts offer a seamless airway with built-in thermal and acoustic insulation performance. Assembling FIBERGLAS™ Duct Systems requires attention to the stapling of joints wth outward facing staples and the proper specification and application of pressure-sensitive and/or heat-activated tapes.


Mechanical Systems Insulation - HVAC / Ductwork

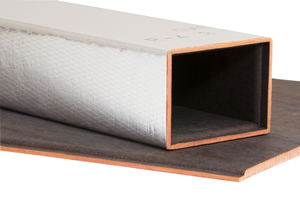

QuietR® Duct Board

  • Absorbs noise and reduces popping noises caused by expansion, contraction and vibrations.
  • Assured thermal R-value performance.
  • Bacterial and fungal growth resistant.
  • Thermal/acoustical insulation board plus jacket forms a single component duct system, thus reducing inspection time.
  • Lightweight boards are easier to transport and handle than insulated sheet metal ducts.
  • Virtually eliminates air leakage thus saving energy and removing the need for system overdesign.

Sheet Metal Ducts - Acoustical Lining Insulation

In sheet metal ducts, Acoustical Lining Insulation is applied with adhesive, and secured with mechanical fasteners, so that it covers the entire inner surface of the duct without blocking airflow. When it abuts a preceding unlined steel duct, the leading edge of the lining must use metal nosing. When velocity exceeds 4,000 fpm (20.3m/s), upstream edges also require metal nosing.


Mechanical Systems Insulation - HVAC / Ductwork

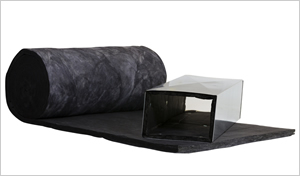

QuietR® Duct Liner Board

  • Outstanding thermal and acoustical performance
  • Absorbs noise within the duct that helps create quiet and comfortable environments
  • Tough, abuse-resistant surface
  • Cleanable surface
  • Bacterial and fungal growth resistant


Mechanical Systems Insulation - HVAC / Ductwork

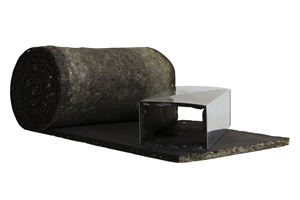

QuietR® Rotary Duct Liner

  • Absorbs fan and air turbulence noise and reduces popping noises within sheet metal ducts.
  • Outstanding thermal and acoustical performance.
  • Bacterial and fungal growth resistant.


Mechanical Systems Insulation - HVAC / Ductwork

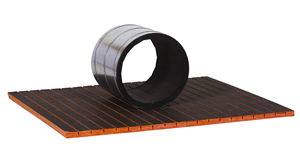

QuietZone® Spiral Duct Liner

  • Outstanding thermal and acoustical performance.
  • Cleanable surface with a black mat facing that provides a smooth, durable surface.
  • Bacterial and fungal growth resistant.


Mechanical Systems Insulation - HVAC / Ductwork

QuietR® Textile Duct Liner

  • Absorbs fan and air turbulence noise and reduces popping noises within sheet metal ducts.
  • Outstanding thermal and acoustical performance.
  • Bacterial and fungal growth resistant.

Sheet Metal Ducts - Thermal Insulation Wrap

In sheet metal duct applications, Thermal Insulation Wrap helps control condensation and can contribute to effectiveness of heating and/or cooling equipment. SOFTR® Duct Wrap FRK should be installed with the FRK facing outward. Secure the side tape flap and adjacent sections using outward clinching staples; side tape flap and adjacent sections seams should all be sealed with pressure-sensitive tape matching the facing or glass fabric and mastic. For ducts 24" in width or greater, on the bottom of the duct use mechanical fasteners such as pins and speed clip washers.


Mechanical Systems Insulation - HVAC / Ductwork

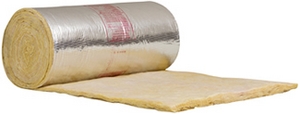

SOFTR® Duct Wrap FRK

  • Condensation control.
  • Enhanced comfort control.
  • Easy to clean surface.
  • Flexible and easy to install.
