Rolling Steel Service Doors 625

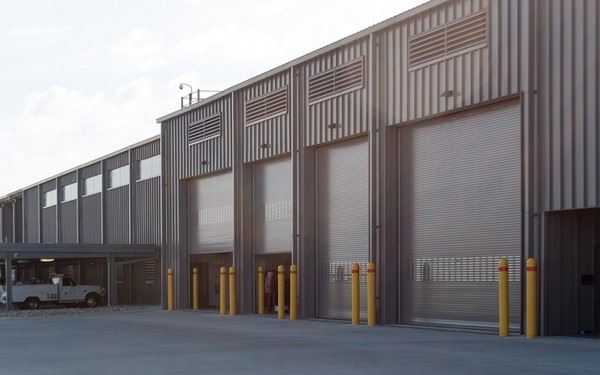

The Model 625 rolling steel doors are an insulated, heavy-duty rolling service door that is an ideal choice for applications requiring a moderate level of thermal protection. Designed in sizes up to 30'4" wide and 28'4" high (9246 mm and 8636 mm), these doors are constructed with a CFC-free, foamed-in-place polyurethane insulation. Vinyl weatherstripping on the bottom bar, exterior curtain-side guide and hood baffle provides additional protection against air infiltration.

Overview

Construction

Product Specifications

Standard Max Width

30'4" (9246 mm)

Standard Max Height

28'4" (8636 mm)

Curtain

24 ga. galvanized steel front
24 ga. galvanized steel back

Insulation

Foamed-in-place, CFC-free polyurethane
R-value 7.7 (1.35 W/m2)

Finish

Gray, tan, white or brown

Hood

24 ga. galvanized steel

Sound Transmission Class rating

21

Wind load

20 psf

Standard mounting

Face of wall

Operation

Chain hoist

Standard springs

20,000 cycle

Weatherseals

Bottom, exterior curtain-side guide, interior hood baffle

Guides

Three structural steel angles PowderGuard® Weathered finish with black powder coat

Bottom bar

Primed steel with vinyl weatherseal

Lock

Padlockable chain keeper

Warranty
  • 24-month limited on door
  • 3 year/20,000 cycles limited on door & operator system (when purchased together)

Enhancements

Door Options
  • Electric operator (RHX®, RSX®, RMZ®) or crank operation
  • Bottom sensing edge
  • Galvanized steel bottom bar angles and guides
  • Insulated guides
  • Sloping bottom bar
  • Between-jambs mounting
  • Stainless steel or aluminum slats
  • High-usage package
  • High-wind load (FBC, TDI, DADE)
  • Weatherseal for interior side guide
  • Lintel seal
  • Cylinder lock
  • Slide bolts
  • Exhaust ports
  • Vision lites uniformly spaced 5/8" x 3" (16 mm x 76 mm) or 1" x 10" (25.4 mm x 254 mm)
  • PowderGuard® Premium powder coat finish options are available in approximately 200 colors as well as custom matching to specification.
  • PowderGuard® Zinc and PowderGuard® Weathered finishes
  • Special application doors:
    • Oversized doors to 1500 sq. ft. (139.4 sq. m)
    • Combination doors with grilles and/or with full or partial standard, perforated or fenestrated slats
    • Spark-resistant doors, craneway doors, pass doors
  • Air infiltration package (meets IECC code requirements 2012 C402.4.3/2015 C402.5.2); includes guide cover and cap;dual brush guide seal; lintel seal; bottom astragal
Slat profile

Flat, insulated, type F-265

F-265i - available up to 30’4” (9246 mm) wide in 24 gauge. Other gauges available. Insulated slat curtain provides R-value of 7.7; U-value of 0.13, STC of 21. No perforation or fenestration available on F26i5. Vision lites available in 5/8" x 3" (16 mm x 76 mm) or 1”x10” (25.4 mm x 254 mm).


See More


Specifications

Standard Exterior Color
WhiteGrayTanBrown

Actual door color may vary from the digital representation shown here. Actual color samples are available by request through your Overhead Door™ Distributor.

Color - Powder Coat Color Options

PowderGuard® Premium powder coat options are available in approximately 200 colors as well as custom matching to specification.
