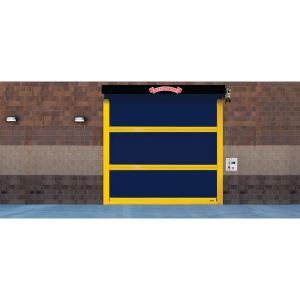

RapidFlex® 994 High Speed Heavy Duty Exterior Fabric Door
RapidFlex® Model 994 is a strutted, heavy-duty exterior high speed fabric door that is perfect for large openings and is best suited for manufacturing, mining, auto/transit, and parking garage applications. It features an independently tested wind load of up to 22.0 psf. The RapidFlex® Model 994 includes industry-leading standard safety features such as reversing edge, two sets of infrared obstruction detection sensors and door stop device.
Our RapidFlex® Model 994 high speed heavy-duty exterior door is a perfect door solution for parking garages, mining, auto/transit and manufacturing facilities.
Overview
ConstructionProduct Specifications Standard Max Width
24'
Standard Max Height
20'
Speed
Up to 55" per second
Break-away Self-reset
Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Strut
4” articulating roller wind strut
Curtain Material
3 layers of PVC coated polyester; 2 layers of polyester weave.
Vision Option
20” high windows spaced evenly across width of door
Operation
Direct drive motor and gearbox system with a door stop device
Control Panel
Variable frequency drive
NEMA 4X cULus listed
Onboard self diagnostic and service reminder
Built-in padlockable field disconnect
Obstruction Detection
2 sets of infrared sensor mounted proximity to the door path
Reversing Safety Edge
Wireless monitored reversing edge
Electrical Availability
208V AC 3PH†, 230V AC 3PH; 460V AC 3PH; 575V AC 3PH†
(†requires stand-alone mounted transformer)
Wind Load*
Up to 22.0 psf
* Pressure/wind resistance value is the ultimate pressure tested at door width of 20'.
Warranty Product Specifications
ConstructionProduct Specifications Standard Max Width
24'
Standard Max Height
20'
Speed
Up to 55" per second
Break-away Self-reset
Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Strut
4” articulating roller wind strut
Curtain Material
3 layers of PVC coated polyester; 2 layers of polyester weave.
Vision Option
20” high windows spaced evenly across width of door
Operation
Direct drive motor and gearbox system with a door stop device
Control Panel
Variable frequency drive
NEMA 4X cULus listed
Onboard self diagnostic and service reminder
Built-in padlockable field disconnect
Obstruction Detection
2 sets of infrared sensor mounted proximity to the door path
Reversing Safety Edge
Wireless monitored reversing edge
Electrical Availability
208V AC 3PH†, 230V AC 3PH; 460V AC 3PH; 575V AC 3PH†
(†requires stand-alone mounted transformer)
Wind Load*
Up to 22.0 psf
* Pressure/wind resistance value is the ultimate pressure tested at door width of 20'.
Warranty Enhancements
Actuation options Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control. Wireless options available
Signaling device options Red/green LED warning light, horn/ strobe combination, rotating warning light
Programmable LED lighting system 3' tall light bar with red, yellow, green lighting
20" high vision panels spaced evenly across width of door
Light Curtain Front or rear mounted; available in 3' or 6' models
