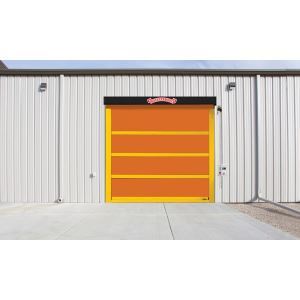

RapidFlex® 993 High Speed Exterior Fabric Door
RapidFlex® Model 993 is a strutted, exterior heavy-duty high speed fabric door with independently tested wind load of up to 19.5 psf*. Its industry-leading standard safety features include reversing edge, two sets of infrared obstruction detection sensors and door stop device.
Perfect for parking garages, manufacturing, warehouse and distribution facilities.
Overview
ConstructionProduct Specifications
Standard Max Width
20'
Standard Max Height
20'
Speed
Up to 65" per second
Break-away Self-reset
Designed to break away from the side guides to minimize damage and simply reset and self-repair after the event
Wind Strut
Metal struts with roller windlocks
Curtain Material
3 layers of PVC coated polyester with 2 layers of polyester weave
Header Braces
Multiple braces across entire width strengthen and combat sagging
Hood
Protection from debris and moisture
Operation
Direct drive motor and gearbox system with a door stop device
Control Panel
- Variable frequency drive
- NEMA 4X cULus listed
- Onboard self diagnostic and service reminder
- Built-in padlockable field disconnect
Obstruction Safety Detection
Infrared sensors mounted in-plane to the door curtain at 18" and 50" - 54" from floor
Reversing Safety Edge
Wireless reversing edge
Available Supply Voltages**
120V AC 1 PH, 208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH†
(†requires stand-alone mounted transformer)
Wind Load*
Up to 19.5 psf
** Single phase available up to 10'x10' doors.
* Pressure/wind resistance value is the ultimate pressure tested at door width of 16'.
Warranty Enhancements
Actuation options Push button, key switch, pull switch, loop detector, motion detector, treadle switch, radio control. Wireless options available
Signaling device options Red/green LED warning light, horn/strobe combination, rotating warning light
Programmable LED lighting system 3' tall light bar with red, yellow, green lighting
Sloped hood and non-drive end cover Protection from debris and moisture
20" high vision panels spaced evenly across width of door
Light Curtain Front or rear mounted; available in 3' or 6' models
