Overview

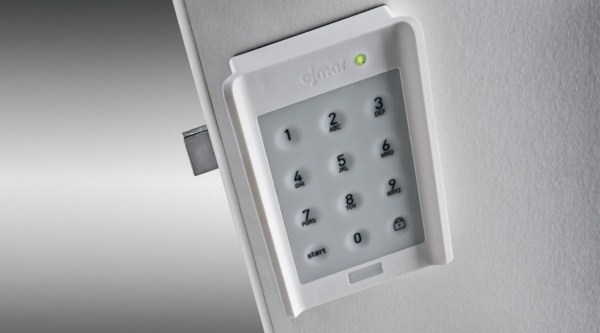

OCS®TOUCH LOCK


OCS®TOUCH LOCK

MAIN FEATURES

  • Touch technology, no membrane keypad
  • Available as temporary or rental lock
  • Available in black or white finish
  • 2 different footprints available
  • Dry or wet area use versions available
  • Selectable user code length: 4, 5 or 6 digits
  • LED in 3 colors for lock status (green, red, amber)
  • Flashing led in order to show locked status
  • Automatic opening (vía software)
  • Time-delay opening; i.e 3 hours after locking the lock (vía Software)
  • Low battery warning and detection.
  • Emergency opening
  • Contactless Progamming key with USB port for PC connection
  • Contactless communication interface between Master key and lock

MODELS

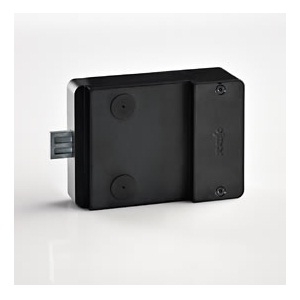

OCS®TOUCH LOCK

E-17,5 TEMPORARY USE

A compact version for both new and retrofit project.

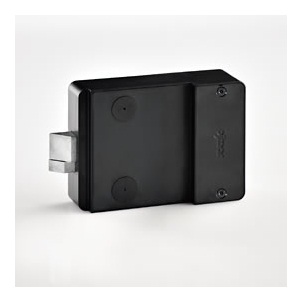

OCS®TOUCH LOCK

E-17,5 RENTAL

A compact version for both new and retrofit project.


OCS®TOUCH LOCK

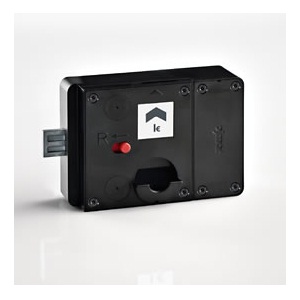

E-30 FOOTPRINT COIN OPERATION

Footprint compatible with previous OCS versions as well as for retrofitting the popular OJMAR coin operated lock (2 extra through-holes required).

Coin operated version available as an option to prevent locker reservations (1 € as a standard, please contact Ojmar for different coinage).


OCS®TOUCH LOCK

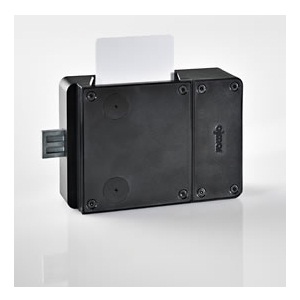

E-30 Footprint CARD OPERATION

Footprint compatible with previous OCS versions as well as for retrofitting the popular OJMAR coin operated lock (2 extra through-holes required).

Card operated version available as an option to prevent locker reservations (*) The card operated OCS is valid for ISO 7810 white cards only.


OCS®TOUCH LOCK

SYSTEM COMPONENTS

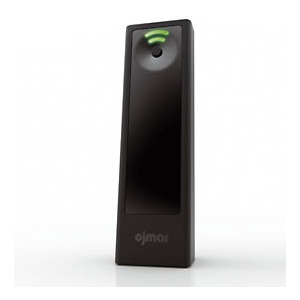

CONTACTLESS KEY

Each Site can have the option to have a Super Master Code to open any lock in lieu of using a Master Key. The Master Key can be stand alone to open and close lockers by management, or it can allow each facility to expand the customization and options available using the OCS Lock System when integrated with the OCS Software. Lockers can be opened and closed by management without disturbing the user’s code.

STAND ALONE OPERATION

The contactless key operates as a master key in an unlimited number of lockers.

INTEGRATED WITH SOFTWARE

As well as master key the key can be set as a Programming Key to facilitate the following functions:

1. PROGRAMMING KEY

Customize the OCS Lock according to the specific facility needs. IE: rental periods, automatic opening, LED On/Off etc.

2. MASTER / SERVICE KEY

Resetting master codes in case of staff leaving for additional security.

3. USER KEY

Can be used as an ADA User Key.

4. EVENTS KEY

Download the Audit Trail and Events at the Lock level with date time as well as the last used code.

5. SOFTWARE

User friendly and intuitive, the optional software will let you manage your site along with the wireless key.
