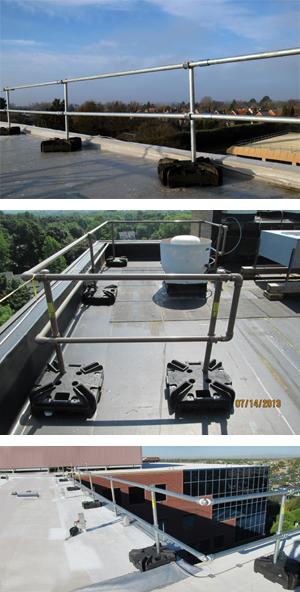

KeeGuard Contractor - Portable Roof Edge Fall Protection
KeeGuard® Contractor offers a new and innovative approach to portable railing systems. Since the system is free standing, there is no need for any hardware connections to the rooftop or working surface. KeeGuard® Contractor can be configured to meet all OSHA Standards for permanent railings, including OSHA Standard 29 CFR 1926.502, 1910.23 & NOMMA Metal Rail manual deflection requirements.
Why use KeeGuard® Contractor guardrail system?
- To meet OSHA regulations for fall protection with a temporary, portable railing system
- All guardrail components are galvanized, which makes KeeGuard® Contractor portable railing extremely durable
- Recycled PVC bases, long life, no-rust.
- Modular design makes assembly of the railing system very fast, 100 feet of KeeGuard® Contractor safety rail can be installed by 2 people in an hour.
- Solid, safe construction
The uprights are secured in the bases by steel galvanized collars and set screws, making the system solid like a permanent railing and allowing variable angle changes of direction. Assembly is easy using a torque wrench or hex key to tighten set screws to 29 lbs/ft.
A railing section consists of 2 horizontal Schedule 40 galvanized pipes and 2 vertical Schedule 40 galvanized pipes for the 42 inch uprights. The modular system has 10 foot railing sections and 5 foot return sections with a galvanized finish ensuring a long and rust-free life of the system.
Powder coating in Safety Yellow over a galvanized finish is available as an optional extra.
Each base weight is molded from recycled PVC in two interlocking halves, supplied assembled. Overall dimensions are 22" square x 6 1/2" deep and weigh a minimum of 90 pounds. The base weights incorporate comfortable carrying handles allowing two people to carry a complete weight or the weights can be easily split by removing two bolts allowing each half to be carried by a single person. The weight also incorporates slots for an optional standard timber toeboard if required.
