Overview



Presentation Walls

Presentation Walls

Virtually unlimited sizes of marker, chalk or tack surfaces surrounded by aluminum trim.

- Installed floor-to-ceiling and/or wall-to-wall
- Optional marker tray can be face installed or magnetic
- H-Bar (panel connector trim) can be vertical or horizontally installed
- H-Bar to match panels (painted to match dry erase or fabric/vinyl wrapped to match tack wall)

Installation Systems:


A. Series Snap On Trim

Advantages & Disadvantages:

  1. Simplest installation
  2. No panels to be cut in the field
  3. Cannot be installed completely wall-to-wall or floor-to-ceiling

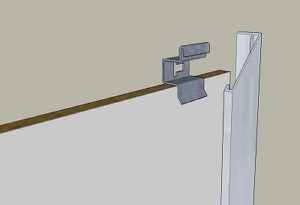

Snap-On Clip attaches around the writing panel, then
Snap-On Trim is then attached to the clips


Presentation Walls

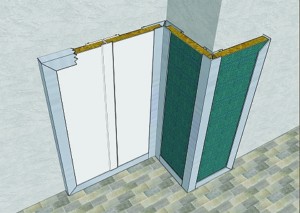

B. Series J Trim

Advantages & Disadvantages:

  1. Inside and Outside corners available
  2. Installer to field-cut trim for best-fit
  3. Spline can be used for seamless installation
  4. Can be installed wall-to-wall and floor-to-ceiling


Presentation Walls

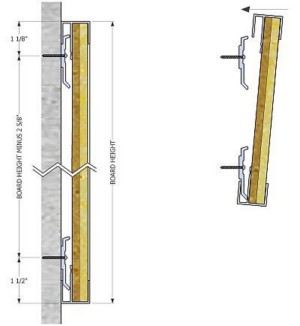

C. Series EZ Hang & Clip

Advantages & Disadvantages:

  1. Concealed Fasteners
  2. Size can be limited by weight
  3. Cannot be installed completely wall-to-wall or floor-to-ceiling
  4. System cannot be splined and is limited to 4'X16'

P610000 - J-Trim, Mullion, Optional Maprail & Tray

P690000 - Snap-On Trim, Mullion & Optional Maprail & Tray

P620000 - EZ Hang
