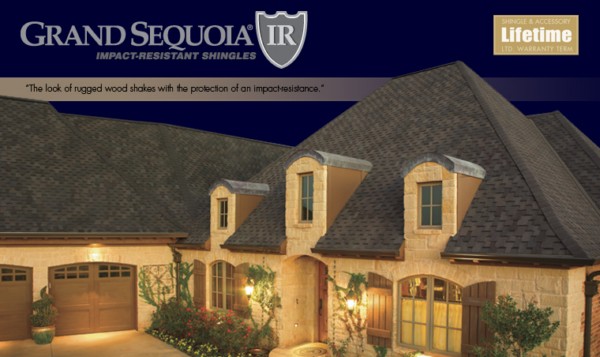

Grand Sequoia IR® Lifetime Designer Asphalt Shingles


Grand Sequoia IR® Lifetime Designer Asphalt Shingles

Sequoia IR® Shingles - Shingle Features

Sequoia IR® Lifetime Designer Shingles

"Great Value For A Rugged Wood-Shake Look."

"Extra-large design with over-sized tabs create a realistic wood-shake look—at a fraction of the cost!"

All Of GAF's Lifetime Designer Shingles Offer You These Great Benefits:

  • Potential Insurance Savings...
    The shingles in this catalog pass the UL 2218 Class 4 Impact Test, and may qualify for insurance discounts of 5-30% or more (check with your insurance agent). Each shingle is labeled with special information neededto qualify for premium discounts according to the requirements of the Texas Department of Insurance &mdash a standard that most hail insurers accept.

  • Superior Wind Performance...
    Meet Class F wind rating from Underwriters Laboratories—the highest rating possible. Dura Grip Adhesive seals each shingle tightly and reduces the risk of shingle blow-off. Shingles warranted to withstand maximum wind gusts of up to 130 mph!*

  • Impact Resistant...
    Pass UL 2218 Class 4, UL’s toughest impact test (shingles show no evidence of cracks or ruptures on front or back of shingle immediately after impact). Compare to “standard” shingles, which may have ruptures or cracks visible on the front or back of the shingle immediately after large hail impact.

  • Exceptional Protection...
    Designed with Advanced Protection® Technology, which minimizes the use of natural resources while providing superior protection for your home

  • Safer...
    Class A fire rating from Underwriters Laboratories—the highest rating possible— and safer than wood shakes or some plastic/synthetic shingles, which carry only a Class C fire rating!

  • Stays In Place...
    Dura Grip Adhesive seals each shingle tightly and reduces the risk of shingle blow-off. Shingles warranted to withstand winds up to 130 mph! This wind speed coverage requires special installation. See GAF Shingle & Accessory Ltd. Warranty for details.

  • The Ultimate Peace Of Mind...
    Lifetime ltd. transferable warranty with Smart Choice® Protection (non-prorated material and installation labor coverage) for the first ten years See GAF Shingle & Accessory Ltd. Warranty for complete coverage and restrictions. The word “Lifetime” means as long as the original individual owner of a single family detached residence (or the second owner in certaincircumstances) owns the property where the shingles are installed. For owners/structures not meeting above criteria, Lifetime coverage is not applicable

  • Perfect Finishing Touch...
    For the best look, use Timbertex® Premium Ridge Cap Shingles with StainGuard® Protection. In the West, use Ridglass® Premium Ridge Cap Shingles

Specifications

Sequoia IR® Shingles

  • Passes UL 2218 Impact Test with Class 4 rating (highest possible)
  • SBS modified asphalt formula and an added fiber- glass backing for maximum impact resistance
  • Lifetime ltd. transferable warranty
  • Fiberglass asphalt construction
  • Size: 17" x 40" with 5" exposure
  • StainGuard® Protection
  • UL 790 Class A fire rated
  • Florida Building Code approved
  • CC approved
  • Texas Department of Insurance approved
  • ASTM D3018 Type 1
  • ASTM D3161 Type 1, Class F
  • ASTM D3462 (See Details)
  • ASTM D7158, Class H
  • Approx. 252 pieces/square
                  4 bundles/square
                  360 nails/square

Seal-A-Ridge® IR

Ridge Cap Shingles

  • Passes UL 2218 Impact Test with Class 4 rating (highest possible)
  • SBS modified asphalt formula
  • Fiberglass asphalt construction
  • 5" Exposure
  • Approx. 12" wide
  • StainGuard® Protection
  • UL 790 Class A fire rated
  • Florida Building Code approved
  • ICC approved
  • 4 Bundles cover approximately 100 lineal feet
  • Approx. 2 nails per piece
  • Approx. 60 pieces/bundle
