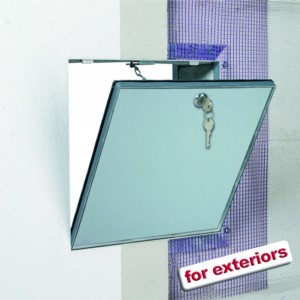

System MPL Access Panel for Exterior Façade

System MPL Access Panel for Exterior Façade

Product description:

The access panel consists of aluminium profiles, a sheet steel insert with expanded metal and a round cylinder lock with key. Both, an outer and an inner frame of the access panel consist of four single frames, which are firmly connected due to a special welding process.

The access panel is equipped with a safety-system against accidental opening. In order to avoid accidents, this safety-system has to be secured after each opening. A joint gap of ⅛" (3 mm) is visible between outer frame and door leaf, which is equipped with an innovative brush joint (air-tight and dustresistant) and, in addition, with a special joint (water resistant). Access panels for facades in the outer area are applicable for direct mounting into solid walls (without external wall insulation system) or for installation into a wall insulation system (foamsealed).

Particular advantages of our system

  • Economical solution
  • Delivery at short notice on request
  • Easy and quick assembly
  • Solid aluminium frame
  • Sophisticated solution
  • Flush installation in facades

MEASURES

Standard dimensions with drywall inlay 1/2"

System MPLAB
Code
Inch
mm
Inch
mm
MPL203203
8"
203
8"
203
MPL305305
12"
305
12"
305
MPL406406
16"
406
16"
406
MPL508508
20"
508
20"
508
MPL610610
24"
610
24"
610
