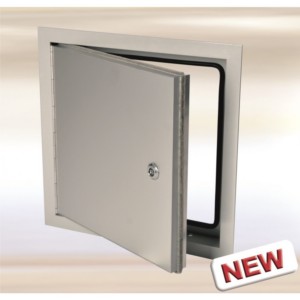

System EXT - Access Panel Exterior/Weather Resistant

System EXT - Access Panel Exterior/Weather Resistant

Product description:

The EXT is a universal, exterior, non-rated access panel. The 20 ga /1mm door provides strength and rigidness and features a key operated turn latch closure. The door is equipped with a continuous stainless steel piano hinge and suitable for left- or right-hand operation. It consists of a welded inner and outer aluminum frame with an aluminum inlay.

Insulation: 1½" polyurethane

Gasketing: Extruded santoprene

The door can be supplied with an optional non-locking or locking handle. Dual-acting non-locking handles enable to open this door from inside or outside.

Capabilities

This popular panel can be mounted in exterior or interior walls. Suitable for mechanical contractors.

Advantages of FF Systems Panels request.

  • Superior engineering & innovative design
  • Fast delivery
  • Quick and easy installation
  • Economical solution
  • Universal door

MEASURES

Standard sizes:

System EXTAB
Code
Inch
mm
Inch
mm
EXT203203AL
8"
203
8"
203
EXT305305AL
12"
305
12"
305
EXT406406AL
16"
406
16"
406
EXT508508AL
20"
508
20"
508
EXT508762AL
20"
508
30"
762
EXT610610AL
24"
610
24"
610
EXT610762AL
24"
610
30"
762
EXT610914AL
24"
610
36"
914
