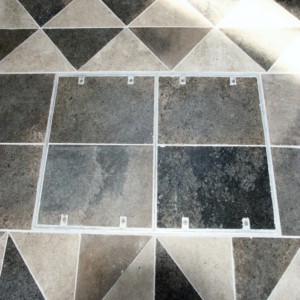

5000 Series - Aluminum Floor Access Cover

5000 Series - Aluminum Floor Access Cover

Product description:

Recessed floor access / duct / multipart* covers and frames shall be Howe Green Ltd 5000 series with 1 hour fire rating to BS 476: Part 20: 1987, continuously fastened aluminium / brass / Colouredge*, top edge dirt seal and mechanically jointed corners, galvanised baseplate and reinforcement, double sealed with socket head securing bolts/unsealed with blanking bolts*. Sizes shall be as shown on contract drawings nos ....† Covers to be supplied complete with ....† sets of combined lifting / securing keys. All to be manufactured and supplied by Howe Green Ltd, Marsh Lane, Ware, Hertfordshire, SG12 9QQ, Great Britain, and installed in accordance with the manufacturer’s installation details and sitework guide.

* Delete as appropriate. † Insert appropriate numbers & quantities

Typical flooring:

  • ceramic tiles
  • concrete
  • hard flooring
  • marble
  • resin
  • terrazzo
  • wooden flooring

Performance:

pedestrian area

Options:

Every cover is available with a choice of aluminium or brass show edge, and matching lifting blocks, or Colouredge high impact pvc edges with aluminium lifting blocks (see website). Double seal. 1hour fire rating to BS 476: Part 20: 1987 available; ask for indicative test report.

Charging:

A15
