Elite Fence Products, Inc. - Industrial Grade Aluminum Fences & Gates

PRODUCT PRESENTATION: The Elite Aluminum Picket Fence industrial and heavy industrial (no exposed screws) are the choice when security and protection are needed to complement the architectural or landscape design. The industrial fence is constructed of 1-5/8" x 1-5/8" rails, 1" x 1" pickets,...


MasterFormat: Site Improvements | Fences and Gates



Elite Fence Products, Inc.
50925 Richard W. Blvd
Chesterfield, MI 48051
Tel: (800) 783-1331
Fax: (586) 468-4884

fence-info@elitefence.com

http://www.elitefence.com

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview



Industrial Grade Aluminum Fences & Gates

Industrial Grade Aluminum Fences & Gates

PRODUCT PRESENTATION:

The Elite Aluminum Picket Fence industrial and heavy industrial (no exposed screws) are the choice when security and protection are needed to complement the architectural or landscape design. The industrial fence is constructed of 1-5/8" x 1-5/8" rails, 1" x 1" pickets, 2-1/2" x 2-1/2" , 3" x 3" or 4" x 4" post.

The heavy industrial fence is constructed of 1-5/8" x 1-5/8" rails with enclosed bottom and no exposed screws, 1" x 1" pickets, 3" x 3" or 4" x 4" post. The industrial and heavy industrial fence line is available in six standard styles. The industrial fence line is available in six standard colors: Black, White, Walnut Brown, Quaker Bronze, Beige and Hartford Green. The heavy industrial fence line is available in Black and Quaker Bronze. Matching gates are available in single entry, double drive or cantilever slide gates.

The industrial and heavy industrial strength fence is available in heights of 3', 4', 5', 6', 7', 8' and 10'. Accessories available to complement your fence are quad finials, tri-finials, butterfly scrolls and circles painted to match the finish of your fence or available in gold. All gates include standard latch and hinges, self closing and self latching gate hardware available upon request.

SPECIFICATIONS INDUSTRIAL
Post2-1/2" x 2-1/2" x .100 Wall
 3" x 3" x 1.25 Wall
 4" x 4" x .125 Wall

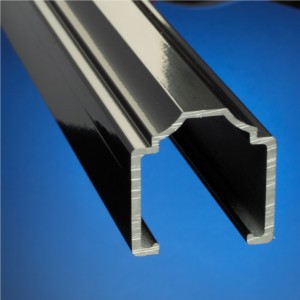

Horizontal Rails1-5/8" x 1-5/8"
Enclosed BottomN/A
Side Walls.100
Top Walls.070
Pickets1" x 1" x .062 Wall
Picket Spacing4" or 1-1/2"
Heights3, 4, 5, 6, 7, 8, & 10 Feet

Colors — Black, Quaker Bronze, White, Walnut Brown, Beige & Hartford Green.
Screws — 18-8 Stainless Steel corrosion resistant. The heads are painted to match the color of the fence.
Panels — Fully Assembled 6 feet in length plus or minus one inch.


Industrial Grade Aluminum Fences & Gates

Industrial Grade Aluminum Fence

Our industrial grade fence is constructed of 1-5/8"x 1-5/8" rails, 1"x 1" pickets, and uses 2-1/2"x 2-1/2", 3"x 3" or 4"x 4" post.

The industrial grade fences are available in six standard styles. The industrial grade fence is available in six standard colors: Black, White, Quaker Bronze, Walnut Brown, Beige and Hartford Green. The industrial grade fence is available in heights of 3’, 4’, 5’, 6’, 7’, 8’, and 10’.

We offer matching gates in single entry and double drive to match the six standard styles of fence. We also offer Estate and Curved Top gates in industrial grade fence to suit your needs. All gates include standard latch and hinges, self-closing and self-latching gate hardware are available upon request. If it is a cantilever gate you are after then look no further than one of our exclusive ZipTrack® aluminum cantilever gates.

Accessories available to compliment your fence include quad finials, tri-finials, butterfly scrolls and circles. These accessories can be powder-coated to match the finish of your fence or may be ordered in a gold finish.

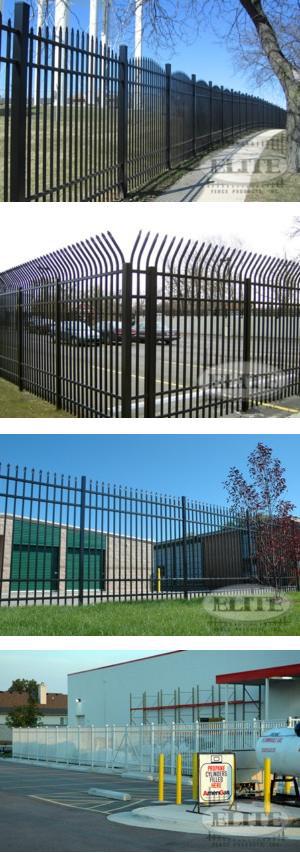

Available Styles


Industrial Grade Aluminum Fences & Gates


Specifications

Industrial Specs
Post2-1/2" x 2-1/2" x .075 or .100 Wall
 3" x 3" x .125 Wall
 4" x 4" x .125 or.250 Wall
 6" x 6" x .125 or.250 Wall
Horizontal Rails1-5/8" x 1-5/8"
Enclosed BottomN/A
Slide Walls.100
Top Walls.070
Pickets1" x 1" x .062 Wall
Picket Spacing3-3/4" or 1-3/8"
Heights3,3 1/2, 4, 5, 6, 7, 8 & 10 Feet
Panel Length6' 3" or 8'


Industrial Grade Aluminum Fences & Gates
