Overview



Commercial Grade Aluminum Fences & Gates

Commercial Grade Aluminum Fences & Gates

PRODUCT PRESENTATION:

The Elite Aluminum Picket Fence is ideal for light commercial applications such as apartment and condominium complexes. The 2-rail, 4 ft high fence is ideal for swimming pools and meets the 1996 BOCA pool code.

The commercial fence is constructed of 1-1/8" x 1-3/4" rails, 3/4" square pickets and 2" x 2" or 2-1/2" x 2-1/2" post. The commercial line of fence is available in 8 standard styles. The powder coated finish is offered in five standard colors: Black, White, Quaker Bronze, Beige and Hartford Green. Matching gates are available for all styles of fence.

The commerial strength fence is available in heights of 4', 5' and 6'. Accessories available to complement your fence are quad finials and tri-finials painted to match the finish of your fence or in gold color. All gates include standard latch and hinges, self closing and self latching gate hardware available upon request.

Post

2" x 2" x .060 WallHorizontal Rails 1-1/8" x 1-3/4"
2" x 2" x .080 WallSide Walls .082
2" x 2" x .125 WallTop Walls .062
2 1/2" x 2 1/2" x .100 WallPickets 3/4" x 3/4" x .050 Wall
Picket spacing 3-31/32"

Available in 5 colors
Black, White, Hartford Green
Quaker Bronze & Beige


Commercial Grade Aluminum Fences & Gates

Commercial Grade Aluminum Fence

Our commercial grade fence is ideal for light commercial applications such as apartment and condominium complexes. Our commercial grade fence is constructed of 1-1/8"x 1-3/4" rails, 3/4"x 3/4" pickets, and uses 2"x2" or 2-1/2"x 2-1/2" post. Our horizontal rails have been engineered for a unique style and maximum strength.

The commercial grade fence is available in seven standard styles and is available in six standard colors: Black, White, Quaker Bronze, Beige and Hartford Green. Our commercial grade fence is available in heights of 3’, 4’, 5’, and 6’.

We offer matching gates in single entry and double drive to match the seven standard styles of fence. We also offer Estate and Curved Top gates in commercial grade fence to suit your needs. All gates include standard latch and hinges, self-closing and self-latching gate hardware are available upon request. If it is a cantilever gate you are after then look no further than one of our exclusive ZipTrack aluminum cantilever gates.

Accessories available to compliment your fence include quad finials, tri-finials, butterfly scrolls and circles. These accessories can be powder-coated to match the finish of your fence or may be ordered in a gold finish.

Available Styles


Commercial Grade Aluminum Fences & Gates


Commercial Specs

Post2" x 2" x .060 Wall
 2" x 2" x .080 Wall
 2" x 2" x .125 Wall
 2-1/2" x 2-1/2" x .075 or .100 Wall

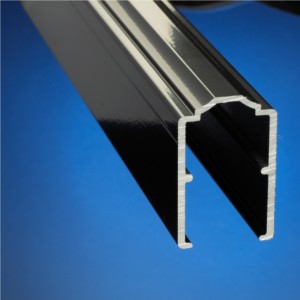

Horizontal Rails1-1/8" x 1-3/4"
Enclosed BottomN/A
Slide Walls.082
Top Walls.062
Pickets3/4" x 3/4" x .050 Wall
 3/4" x 1" x .062 Wall
Picket Spacing3-3/4" or 1-1/2"
Heights3,3 1/2,4, 4 1/2, 5, & 6 Feet
Panel Length6' or 7' 6"


Commercial Grade Aluminum Fences & Gates
