Overview



s_onro® Exterior Roller Shutter System

s_onro® Exterior Roller Shutter System

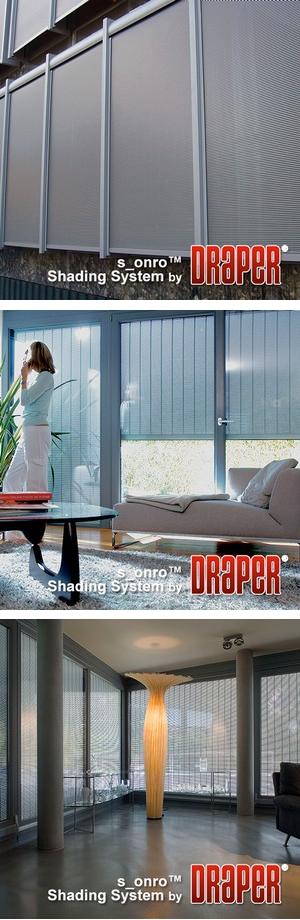

s_onro® is an exterior roller shutter system made of aluminum slats that are designed to cut out the sun and provide privacy but still allow light and air into the room as needed. This clean, modern look has an architectural feel. The individual profiled slats are roll-formed from stainless steel and laser-welded in the direction in which they hang on pliable stainless steel straps that allow the system to be rolled up on the winding shaft.

As the screen descends into place you control the openness by stopping the descent. The bottom-up closing of the system allows you to have privacy by closing the lower part of the system while leaving the top open to the light. Glare control is automatic since direct penetration of the sun’s rays is cut out once the sun rises more than 20 degrees above the horizon. The system can be completely closed for total privacy and light exclusion as well.

  • Wind resistance up to 56mph (90kph.)
  • Multiple colors available
  • Two headbox styles available, square and round
  • Side guide options available
  • Sizes available:
    • Minimum width 24” / 600mm
    • Maximum width 7’ 10” / 2400mm
    • Maximum drop 9’ 10” / 3000mm
    • Maximum area 65 sf / 6 sm
  • Colors Available:
    • White: RAL 9016
    • Silver: RAL 9006
    • Silver Gray: RAL 9007
    • Anthracite: RAL 7016
    • Custom: See Draper
