s_enn® Stainless Steel Exterior Shade System

s_enn® Stainless Steel Exterior Shade System

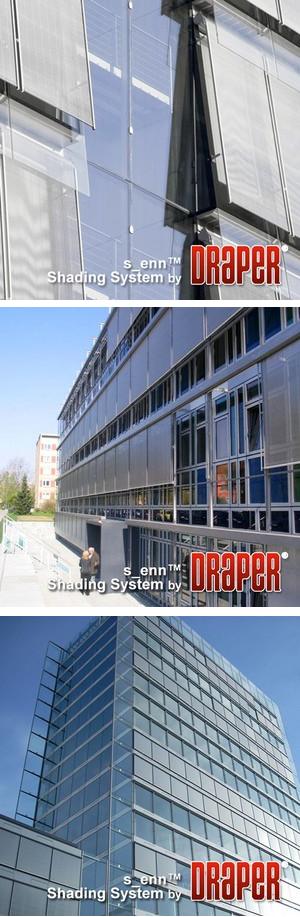

The s_enn® shading system is a unique exterior stainless steel shade with a very clean, modern architectural look. It has roll-formed rods welded onto stainless steel tapes that allow the panels to be rolled up like a standard roller shade. The hollow stainless steel sections are lightweight. The rods are placed to allow a nice view-through while direct light is blocked when the sun is at an angle of 20 degrees or higher.

Very wind stable, the system has been tested in a wind tunnel at speeds of up to 80mph / 126kph. with no damage so this system can go on the exterior of high rise buildings. The system is warranted in wind speeds of up to 56 mph / 90 kph, dependent on specific project details.

  • Two different guide styles available
  • Two headbox styles available, square and round
  • Sizes available:
    • Type 70 system with side guide rods
      • Minimum width 25” / 635mm
      • Maximum width 8’ 10” / 2700mmn
      • Maximum drop 13’ 1” / 4000mm
      • Maximum area 107 sf / 10 sm
    • Type 71 system with extruded side guides
      • Minimum width 25” / 635mm
      • Maximum width 8’ 10” / 2700mm
      • Maximum drop 19’ 8” / 6000mm
      • Maximum area 150 sf / 14 sm
