Overview



Ridge-Fold Gym Dividers

Ridge-Fold Gym Dividers

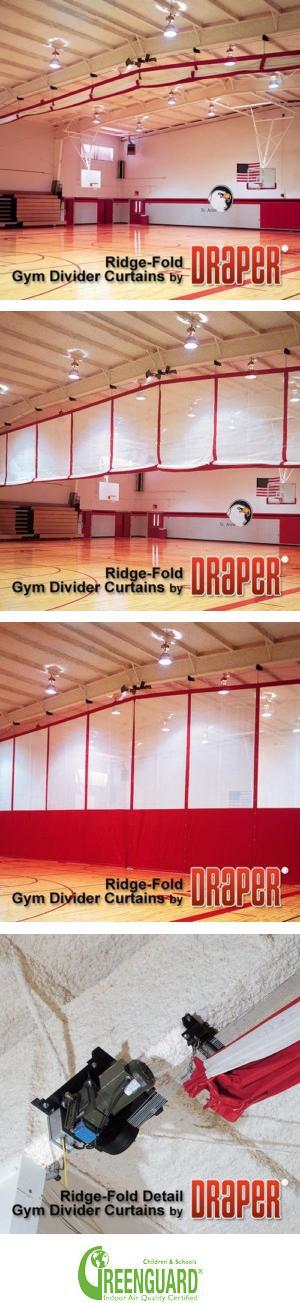

A Ridge-Fold gym divider curtain installs and folds up compactly along the slope of the roof. The accordion fold-up action is achieved by lift cables passing through grommets as the bottom tube is raised. If the roof of your building peaks in the center or to one side, then Draper's Ridge-Fold is the gym divider for you. Tell us the height of the peak and eaves and the desired curtain width. We'll customize a divider to conform to the pitch of the roof.

  • The curtain seams are vertically and electronically welded with a 1" full contact weld.
  • Only Draper uses hinged pipe in the top and bottom pockets, allowing the curtain to follow the contour of the building.
  • Outer edge hems are triple turned with double welds.
  • A Ridge-Fold divider gives you the maximum clearance for competition beneath the divider.
  • Simple to install. Hoist cables are pre-attached to the drums at the motor end: just guide them to the the appropriate pulley, lace down through the grommets and attach to the concealed weights in the bottom pocket.
  • Total hanging weight is, on average, 1/2 pound per sq. ft.
  • The stacking dimension is 30".
  • A minimum of 6" of clearance is required between vertical edges of adoining curtains and fixed objects. However, we suggest you allow larger openings spaced periodically around the radius of the track, to enable access to and from the courts.
  • Each hoist cable terminates at an individual drum that is part of the C-Face motor system.
  • Electric winch provided with Ridge-Fold Gym Divider

Draper is the first manufacturer of gymnasium equipment to receive GreenGuard Children and Schools™ Certification for gymnasium equipment. This certification means that our certified products meet the strictest off-gassing standards and contribute to a safer and healthier indoor environment for school age children.

GreenGuard Children and Schools™ Certified products include: EcoVision Wall Pads, EcoVision Class A Flame Retardant Wall Pads, Solid Vinyl Gym Divider Curtain Materials, and Mesh Vinyl Gym Divider Curtain Materials.
