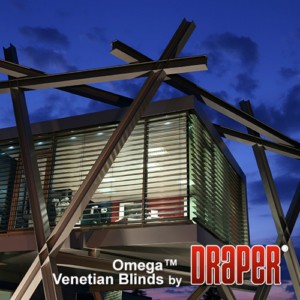

Omega™ Venetian Blinds

Omega Venetian Blinds

Winner of the 2015 Platinum ADEX award.

Draper’s Omega Venetian Blinds are one of the most flexible shading systems available. They can be installed on the interior or exterior as well as in double facades. They have one of the lowest shading coefficients of any system, reducing the solar energy that gets into a building by as much as 92%, therefore significantly reducing energy costs for cooling. With Omega venetian blinds, the slats can be tilted as required to provide effective solar control or can be retracted completely if there is no sun on the facade.

Given the flexibility of this product it is a very good daylighting and energy conservation tool. The system is available in both manual (interior only) and motorized versions. Models designed for harsher environmental conditions (sand, dirt, dust) are available. Custom controls can also automate the deployment and retraction of the blinds as well as the tilting of the slats to allow precise energy and light management as well as glare control.

The Omega venetian blind system has excellent view through when the slats are in the horizontal or partially tilted position and provides glare control as the slats are tilted to prevent direct sun penetration.

The slats in an Omega venetian blind system are physically connected to the ladder braid using a double omega connection to ensure that the system is stable in the wind and that the slats do not flutter. Guide wires that run through all of the slats are also used on all exterior systems to prevent movement that could result in noise or damage to the system or the façade.

Omega venetian blinds handle wind loads up to a maximum speed of 38 mph (61km). Motorized exterior systems are equipped with an anemometer control system to automatically retract the blinds if the wind speed exceeds the maximum allowable value. Blinds can also be automatically deployed, tilted and retracted in response to the sun conditions in order to provide optimum solar control.

This venetian blind system can be installed on the interior and exterior as well as between the glass inside a curtain wall.

The system comes in three different configurations.

  • Slat Sizes available:
  • 50mm (2”), 60mm (2.4"), 80mm (3”), 100mm (4”), & 150mm (6”).

    Also available in 60mm (2.4") and 80mm (3”) rolled edge slat.

    (Note: Metric numbers are exact, imperial numbers are estimates)

    Slat Colors available:

    RAL 9006 (Aluminum), RAL 9016 (Traffic White), RAL 9007 (Grey Aluminum)

  • Method of Operation:
    • Manual – gearbox and crank handle
    • Motorized – 110v box motor which is generally installed in the center of the head rail. Two different motors are available depending on the size of the blind.
  • Omega Sizes
    • Manual Sizes: from 18.5” to 16’ 1” / 470mm to 4900mm wide
    • Motorized Sizes: from 22” to 16’ 1” / 550mm to 4900mm wide
    • Maximum drop: 23’7”/ 7200mm
    • Maximum area:
      • Manual: 91 sf / 8.5 sm
      • Motorized: 195 sf / 18 sm
  • Omega L Sizes
    • Manual Sizes: from 18.5” to 16’ 1” / 470mm to 4900mm wide
    • Motorized Sizes: from 22” to 16’ 1” / 550mm to 4900mm wide
    • Maximum drop: 12’1” / 3700mm
    • Operator maximum lifting area:
      • Manual: 91 sf / 8.5 sm
      • Motorized: 195 sf / 18 sm
  • Omega XL Sizes
    • Manual Sizes: from 18.5” to 16’ 1” / 470mm to 4900mm wide
    • Motorized Sizes: from 22” to 16’ 1” / 550mm to 4900mm wide
    • Maximum drop: 32’1” / 9800mm
    • Maximum area:
      • Manual: 90 sf / 8.5 sm
      • Motorized: 195 sf / 18 sm
