Overview

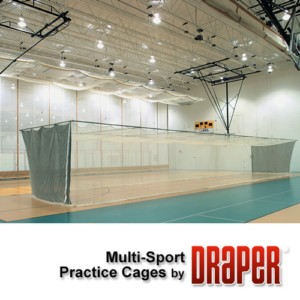

Multi-Sport Practice Cages

Multi-Sport Practice Cages

Multi-Sport Practice Cages

Draper has a solution to year-around practice: move indoors with our Practice Cage. Our cage has a simple design but various uses: step inside and practice swinging at baseballs, softballs, golf balls, tennis balls; practice kicking footballs and soccer balls—many activities can move indoors. Practical in application and design, the unit is motor operated. A turn of the key will raise or lower the cage suspended from a rotating drive pipe.

Draper offers three models of Multi-Sport Practice Cages to match any specification and to fit almost every building condition. All practice cages fold electrically to storage position at the ceiling when not in use and lower into playing position with the turn of a key switch. All designs feature 1-5/8" (41mm) OD galvanized steel tube frame and knotless nylon netting on four sides and top. Cage features two zippered corners for easy access. Nylon netting is available in black or white and has 3/4" (10mm) openings to allow use for baseball, softball or even golf practice. Standard cage size is 10’ (w) x 12’ (h) x 70’ (l) (305cm W x 366cm H x 2144cm L), but can be provided in custom sizes when necessary. Netting is tall enough to allow sufficient length to rest on the floor and prevent balls from going under.


Multi-Sport Practice Cages

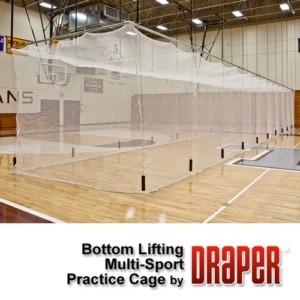

Bottom-Lifting Practice Cage

Draper’s newest and most convenient practice cage design. Lifting cables pass through 2" (51mm) wide frame suspension nylon belts; links attached to the netting and terminate at steel weights. Cage automatically folds the netting to the frame then lifts tight to the storage position. Just turn the key switch and watch the cage fold with no manual operations required.


Multi-Sport Practice Cages

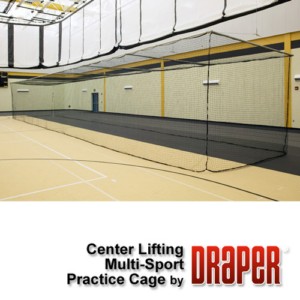

Center-Lifting Practice Cage

Traditional design with motor and drive shaft located at the center of the cage. Frame and netting lifted with sling style cable arrangement. Net manually folded to top of cage frame for storage.


Multi-Sport Practice Cages

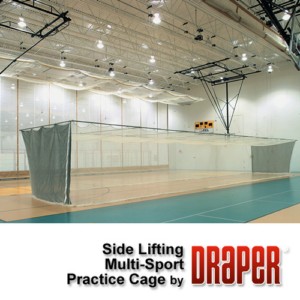

Side-Lifting Practice Cage

This style of practice cage offers the smallest storage dimension. Design has the motor and drive shaft down one side and cable guide pulleys down the other to allow it to lift the frame tight to the ceiling. Netting is manually folded to top of cage frame for storage.
