LCD Lift - Motorized Projector Lift

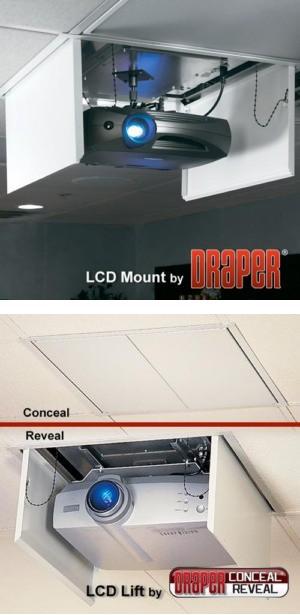

Bomb bay doors and a slim cross-section distinguish the LCD Lift. Most popular LCD and DLP projectors fit comfortably inside this unit, which is available in two sizesModel A and Model B. Bomb bay style closure doors are standard.
Environmental Air Space Housing of aluminum, with closure doors finished in white, is standard. Contains internal switched duplex receptacle, 11 11 5V AC, which is powered when the unit is fully down. The LCD Lift contains an innovative current sensor that delays closing of the unit until the projector lamp has shut off. Lifting capacity 65 lbs.
Ceiling Closure Panel Flat ceiling closure in a white baked enamel finish or recessed to accept ceiling tile.
Ceiling Access Door A 2' x 2' hinged door to access lift above a finished ceiling for cleaning, maintenance or repairs without having to damage the ceiling. Available with a white painted finish or recessed to accept ceiling tile.
- Factory Installed Cables: Draper will factory install cables for RGBHV with BNC or 15pin HD connectors, S-Video, Composite and Component Video with BNC or RCA connectors, Serial Communication for projector control with DB9 connectors, CAT 5e, CAT 6, and HDMI. This option is available on the LCD lift, Micro Projector Lift, and Scissor Lifts. This option saves installation time in the field since installer does not have to attach cables to the lift. Cable Flyer
- Can be independently operated using Draper's motorized lift controls.
- Warranted for one year against defects in materials and workmanship.
