Indoor Basketball Backboards

Indoor Basketball Backboards

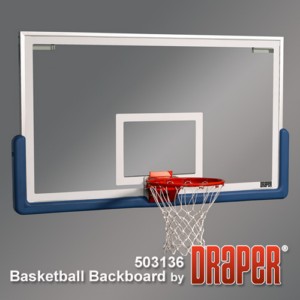

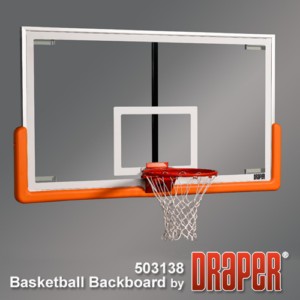

Rectangular Glass 72" x 42" (183cm x 107cm) Basketball Backboard

Fully tempered 1/2" (13mm) glass with official white target and border permanently fired into glass. Frame constructed of extruded brushed aluminum. Used only for backstop structures with Goal Brace direct goal attachments. Indoor use only.


Indoor Basketball Backboards

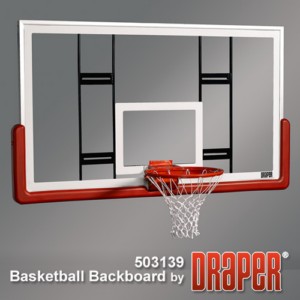

EZ Strut Bank 72" x 42" (183cm x 107cm) Basketball Backboard

Fully tempered 1/2" (13mm) glass with official white target and border permanently fired into glass. Frame constructed of extruded brushed aluminum. Used only for backstop structures with Goal Brace direct goal attachments. Has additional vertical strut to relieve stress on glass during slam dunks. Goal is bolted to a plate welded to bottom of strut for maximum strength. Used only for backstop structures with four-corner backboard mounting. Indoor use only.


Indoor Basketball Backboards

Rectangular Glass 72" x 42" (183cm x 107cm) Conversion Basketball Backboard

Fully tempered 1/2" (13mm) glass with official white target and border permanently fired into glass. Frame constructed of extruded brushed aluminum. Used only for backstop structures with Goal Brace direct goal attachments. Designed to replace fan shaped backboards. Has all required conversion framework attached to backboard. Incorporates a horizontal member which bolts to goal for maximum strength. Indoor use only


Indoor Basketball Backboards

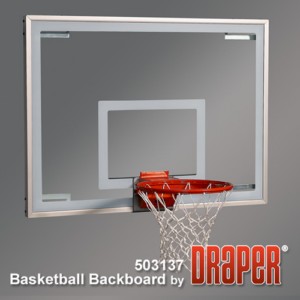

Downsize Rectangular Glass 54"x 40" (137cm x 102cm) Basketball Backboard

Compact Size for smaller gymnasiums. Fully tempered 1/2" (13mm) glass with official white target and border permanently fired into glass. Frame constructed of extruded brushed aluminum. Used only for backstop structures with Goal Brace direct goal attachments. Indoor use only.


Indoor Basketball Backboards

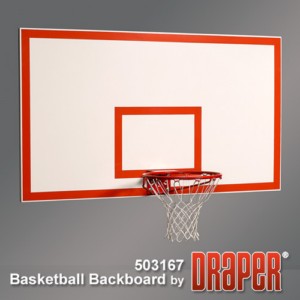

Rectangular Fiberglass 72" x 42" (183cm x 107cm) Basketball Backboard

This basketball backboard is official size 72" x 42" x 2" (183cm x 107cm x 51mm) rectangular shaped. It has a white finish with permanently silk screened 2” (51mm) wide orange perimeter and target area markings. Backboard is molded from high strength fiberglass with ribs and heavy flanges for maximum rigidity. Goal mounting holes will accept standard 5" (127mm) (horizontal) x 5" (127mm) (vertical) or 5" (127mm) (horizontal) x 4-1/2" (114mm)(vertical) centers. Backboard is weatherproof for indoor or outdoor use.

  • Official size 72" x 42" x 2" rectangular shape
  • White finish with permanently silk screened, 2” wide orange perimeter and target area markings
  • Molded from high strength fiberglass with ribs and heavy flanges for maximum rigidity
  • 4-1/2" to 5" x 5" goal mounting hole pattern
  • 20" x 35" backboard mounting dimensions
  • Weatherproof for indoor or outdoor use


Indoor Basketball Backboards

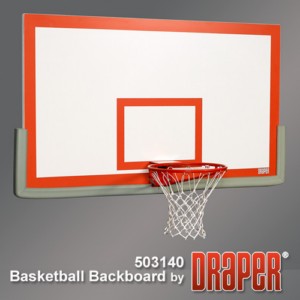

Rectangular Wood 72" x 42"Basketball Backboard

Finest wood backboard available. 55 PCF density solid laminated wood core with eggshell white polyurethane face to resist abrasion. Inner panels are thermally fused. Border and target markings are part of laminate to prevent wear. Indoor use only


Indoor Basketball Backboards

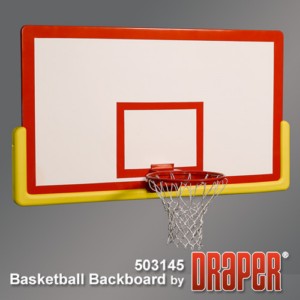

Rectangular Steel 72" x 42" Basketball Backboard

Constructed of one-piece 12 ga. steel reinforced with formed steel channel sections at goal and mounting points. Finished with primer and two coats of outdoor white enamel. Fan mounting center. Indoor or outdoor use.


Indoor Basketball Backboards

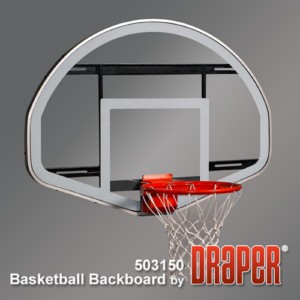

Fan Glass 54" x 39" (137cm x 99cm) Basketball Backboard

Constructed of high strength aluminum frame and 1/2" (13mm) fully tempered glass. Official white target and border are permanently fired into glass. Indoor use only.


Indoor Basketball Backboards

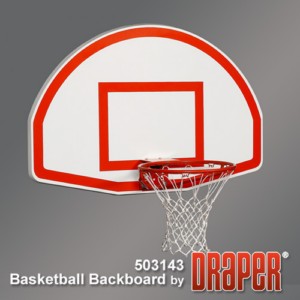

Fan Aluminum 54" x 35-1/2" Basketball Backboard

White, solid die cast aluminum with reinforcing ribs for added strength. White powder coat finish and lifetime warranty. Includes orange border and target. Indoor or Outdoor use.


Indoor Basketball Backboards

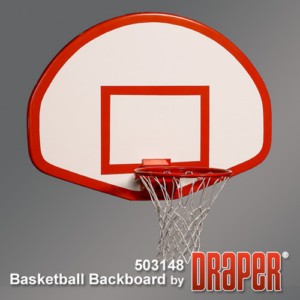

Fan Fiberglass 54" x 39" Basketball Backboard

This basketball backboard is official 54” x 39” x 1-1/2” (137cm x 99cm x 38mm) fan shaped. It has a white finish with permanently silk screened 2” (51mm) wide orange perimeter and target area markings. Backboard is molded high strength fiberglass with ribs and heavy flanges for maximum rigidity. Goal mounting holes will accept standard 5" (127mm) (horizontal) x 5" (127mm) (vertical) goal mounting. Backboard is weatherproof for indoor or outdoor use.
