AeroLift 25/50/150 Motorized Projector Lift

AeroLift 25/50/150 Motorized Projector Lift

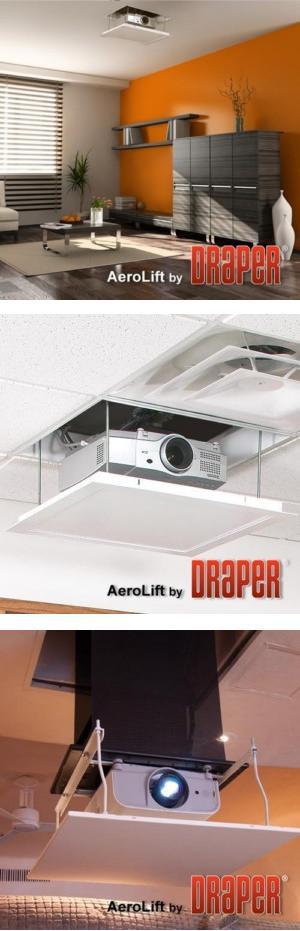

The AeroLifts are powered by strong tubular motors for a simplified design, and features a stabilizing arm which can be used for cable management. Built-in adjustability allows you to deal with job site conditions quickly and easily. The projector can be mounted flush to bottom pan, or with SMS Low Profile Mount. Can also be used to recess speakers, security cameras, videoconferencing cameras or document cameras. Can be independently operated using Draper's motorized lift controls.

3 Models Available

AeroLift 25 Has a lifting capacity up to 25 lbs. It installs easily between standard 2” thick ceiling joists on 16” centers. Closed position: 4" high x 12-1/2 " wide x 22-1/4 " long, not including projector, mounting bracket, ceiling closure or other accessories. (The 12-1/2" dimension can expand to 14" to meet joists that might be spaced further apart, or to compensate for joists that might not quite be 2" thick.) Vertical travel 20" (extension)

AeroLift 50 and 150 Have lifting capacities up to 50 lbs and 150 lbs respectively. Vertical travel 32" (extension) for both models.

  • Warranted for one year against defects in materials and workmanship.
