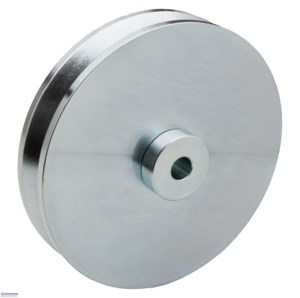

CI2625 / 6" Hardcore Gate Wheel for Wheel Boxes

CI2625 / 6" Hardcore Gate Wheel for Wheel Boxes

The 6” of HardCORE V-Groove Wheel for Wheel Boxes is designed to be used on a gate with a standard 6" wheel box. This wheel does not include carriage plates and is ideal for use with existing wheel boxes in a "retrofit" repair. All HardCORE wheels use SHUT IT’s unique bushing design, which fully utilizes the roller bearings.

Key Features

  • Two Maintenance Free Sealed Bearing (no greasing)
  • Adjustable Plates For Perfect Installations
  • Only 1 1/8” thick to reduce friction and debris issues
  • Limited Lifetime Warranty (5 Years on Bearings)
  • Zinc Plated
  • Maximum Load Rating: 5000 lbs
  • Maximum Gate Weight: Up To 1500 lbs
  • Minimum 1045 Cold rolled steel (30RC rating)

Installation Options

  • Weld-on Installation
