Overview


Motorized Shades

ElectroShades®

These motorized systems provide the ideal solution for inaccessible high bays, executive spaces, conference and training facilities, and other public areas. The multiple, optional accessories and bracket configurations allow for flexibility within projects. From the boardroom, to 40-foot-tall exhibition areas, there are ElectroShade solutions that meet your client’s criteria.


See More


Specifications

Ecoveil

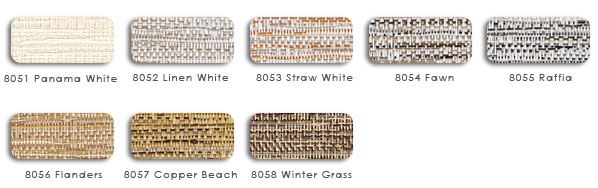

EcoVeil Naturals 8050 Series (1-2% open)
  • Eight colors
  • 100% TPO (thermoplastic olefin)
  • 64-66 in. (163-168cm) wide
  • Pass NFPA 701-2004
EcoVeil Screens 0950 Series (1% open)

  • Eight colors
  • 100% TPO (thermoplastic olefin)
  • 64-66 in. (163-168cm) wide
  • Pass NFPA 701-2004

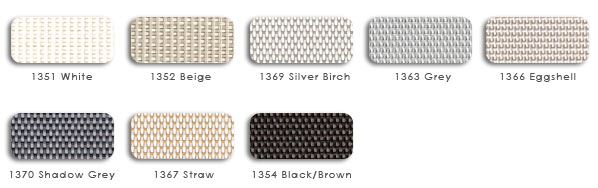

EcoVeil Screens 1350 Series (5% open)
  • Eight colors
  • 100% TPO (thermoplastic olefin)
  • 100 in. (254cm) wide
  • Pass NFPA 701-2004
EcoVeil Screens 0950 Series (1% open)

  • Eight colors
  • 100% TPO (thermoplastic olefin)
  • 64-66 in. (163-168cm) wide
  • Pass NFPA 701-2004
ThermoVeil for A/V

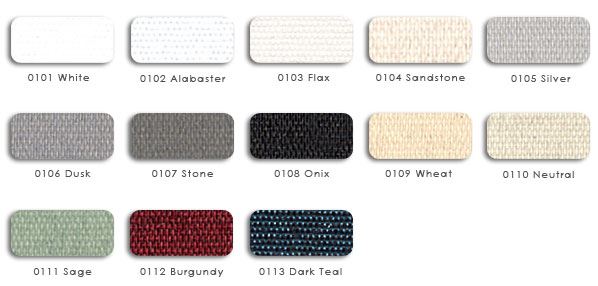

Equinox 0100 Series
  • Appropriate for multi-media are functions
  • Provides thermal insulation and opacity at the window wall
  • Washable surface, flame retardant and fade resistant
  • Content: 53% fiberglass, 45% acrylic, 2% poly finish
  • Transparency: Opaque
  • Stocked in 100″ (2540mm) width
MirroFilm 0600 Series

  • Transparent, light filtering and heat insulating material
  • Cen be used on DualShades
  • Washable surface and fade resistant
  • Transparency: Transparent film
  • Stocked in 60″ (1524mm) and 72″ (1829mm) widths

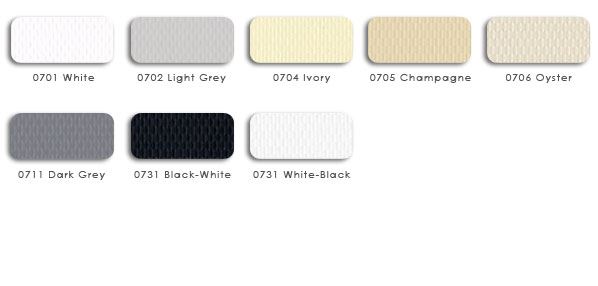

Blackout 0700 Series
  • Cost effective
  • Appropriate for multi-media are functions
  • Provides insulation and opacity at the window wall
  • Washable surface, flame retardant and fade resistant
  • Content: 79% vinyl, 21% polyseter core
  • Transparency: Opaque
  • Stocked in 72″ (1829mm) width
ThermoVeil Vertical and Basket Weaves

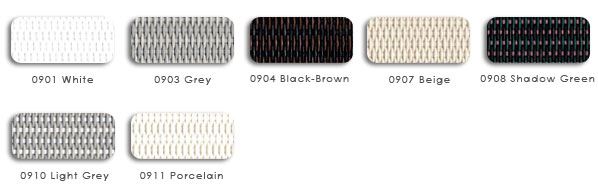

Transulcent Vertical Weave 0900 Series

  • Content: 79% vinyl, 21% polyseter core
  • Openness factor: ± 0-1%
  • Stocked in 72″ (1829mm) width
  • Color will affect surface brightness and view
  • Contribute towards a healing environment by helping patients take advantage of the therapeutic natural light and views
  • Full-size mockups recommended (slight color change will occur due to changes)
  • Offered and available in a wide range of colors

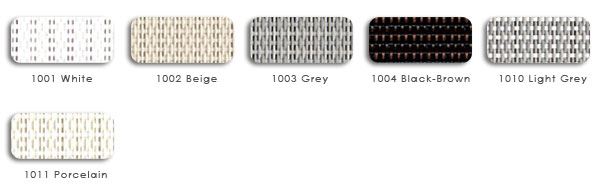

Dense Vertical Weave 1000 Series
  • 2-3% openness factor
  • Washable, flame retardant and fade resistant
  • Offered and available in a wide range of colors
  • Contribute towards a healing environment by helping patients take advantage of the therapeutic natural lights and views
  • Content: 79% vinyl, 21% polyseter core
  • Openness factor: ± 2-3%
  • Stocked in 72″ (1829mm) and 96″ (2438mm) widths
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)

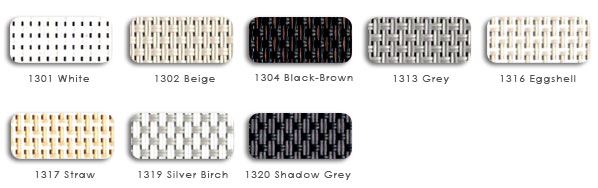

Basket Weave 1300 Series

  • Offered and available in a wide range of colors
  • Provides a uniform scrim effect at the window wall with appropriate densities for sun control
  • Content: 79% vinyl, 21% polyseter core
  • UV Test 200 sun-fade hours: None
  • 500 sun-fade hours: 5%
  • Openness factor: ± 5%
  • All colors stocked in 63″ (1600mm) and 96″ (2438mm) widths
  • 126″ (3200mm) width. Stocked: 1301,1302, 1304, 1313, 1316 and 1320
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)
Open Vertical Weave 1800 Series
  • Washable, flame retardant and fade resistant
  • Offered in a wide range of colors
  • Content: 79% vinyl, 21% polyseter core
  • Openness Factor: ±15%
  • Stocked in 63″ (1600mm) widths
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)

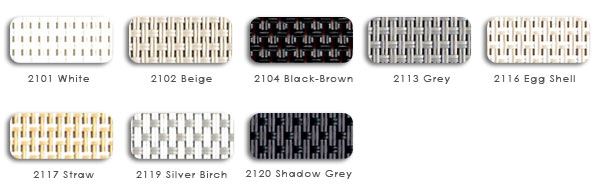

Open Basket Weave 2100 Series

  • Offered in a wide range of colors
  • Provides a uniform scrim effect at the window wall with appropriate densities for sun control
  • Content: 79% vinyl, 21% polyseter core
  • Openness Factor: ±10%
  • Stocked in 63″ (1600mm) and 96″ (2438mm) widths
  • 126″ (3200mm) width available on special order
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)
EuroVeil / EuroTwill

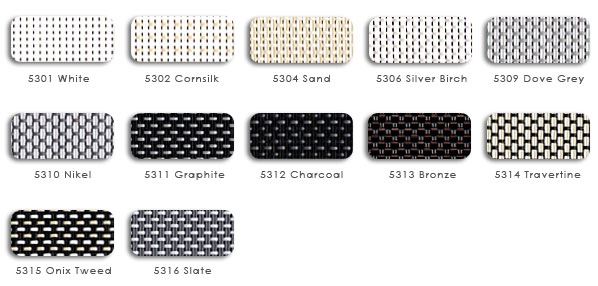

EuroVeil 5300 Series
  • Offered in a wide range of colors
  • Provides a uniform scrim effect at the window wall with appropriate densities for sun control
  • Content: 85% vinyl, 15% polyseter core
  • Deterioration (200 sun-fade hours): None
  • Openness Factor: ± 5-6%
  • Stocked in 63″ (1600mm) and 96″ (2438mm) widths
  • Color will dramatically affect comfort factor and visual tasks
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)

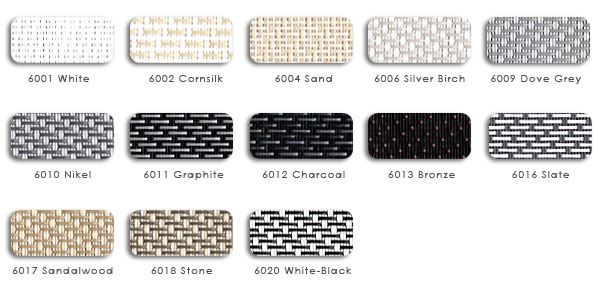

EuroVeil 6000 Series

  • Offered in a wide range of colors
  • Provides a uniform scrim effect at the window wall with appropriate densities for sun control
  • Content: 79% vinyl, 21% polyseter core
  • Openness Factor: ±10%
  • Stocked in 63″ (1600mm) and 96″ (2438mm) widths
  • 126″ (3200mm) width available on special order
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)
ThermoVeil for Healthcare

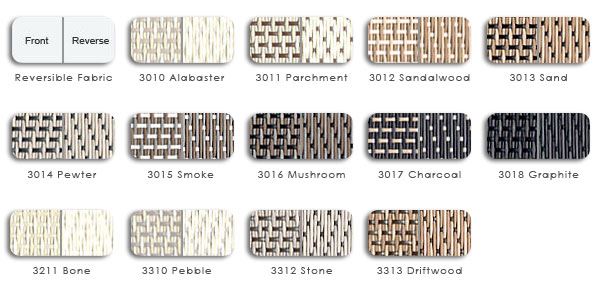

Satin and Diamond Twill 3000 Series
  • Minimum yards 250 Linear Yards ±10% or 250 Linear Yards +20%
  • Content: 79% vinyl, 21% polyseter core
  • Openness Factor: ± 1-2%
  • Stocked in 72″ (1829mm) and 96″ (2438mm) widths
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)

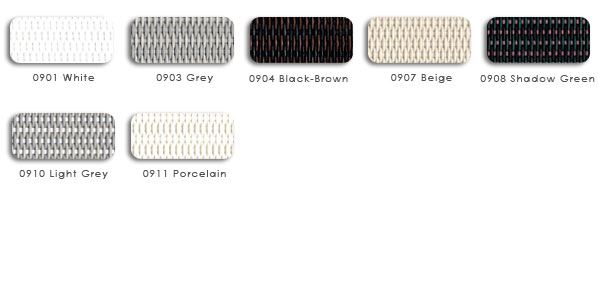

Translucent Vertical Weave 0900 Series

  • Features privacy screen cloth which allows light in from the outside while maintaining privacy day and night
  • Contribute towards a healing environment by helping patients take advantage of the therapeutic natural light and views
  • Available in a wide range of colors
  • Content: 79% vinyl, 21% polyseter core
  • Openness Factor: ± 0-1%
  • Stocked in 72″ (1829mm)
  • Color will affect surface brightness and view
  • Full-size mockups recommended (slight color change will occur due to changes)
