rFOIL™ R-4.2 and R-6 Reflective Duct Wrap Insulation

rFOIL™ R-4.2 and R-6 Reflective Duct Wrap Insulation

rFOIL™ reflective duct wrap insulation is a double-layer of polyethylene bubble, bonded to and sandwiched between two radiant barrier sheets. It is specially designed to reduce radiant heat gain/loss in all residential and commercial duct applications. rFOIL™ also helps control condensation by providing an airtight thermal break around duct work.

rFOIL™ reflective duct insulation increases system efficiency, lowers stress on HVAC equipment, reduces energy usage and utility bills.

Applications:

  • Duct wrap insulation
  • Suitable for all metal ductwork
  • Residential and commercial
  • Indoor insulation use (2290 Series)

Benefits:

  • Meets R-4.2 and/or R-6 insulation code requirements
  • Aluminized surfaces provide unmatched thermal performance which stops virtually ALL heat from radiating in or out of duct systems
  • Greatly improves HVAC system efficiency
  • Lowers run-time and increases lifespan of heating and cooling systems
  • Reduces energy usage and utility bills
  • Impermeable thermal core provides tremendous condensation control
  • Easy, clean, and safe to install
  • Achieve R-values with less material thickness
  • No protective equipment or clothing required
  • No ITCH or exposure to dangerous glass fibers
  • Will not harbor mold, mildew or other fungi
  • Printed with full-length code certification strip


SPECIFICATIONS


Physical Properties
Test
Duct Insulation (Indoor Use)
2290 Series (Metalized Foil)
NOMINAL THICKNESS
5/16"
WEIGHT
1.25 oz / sq. ft.
TEMPERATURE RANGE
ASTM C411
-50°F to 180°F
FIRE RATING
ASTM E84-09
CLASS 1 / CLASS A
CAN/ULC-S102-10
FLAME SPREAD = 0
SMOKE DEVELOPED = 0
THERMAL RESISTANCE
ASTM C335

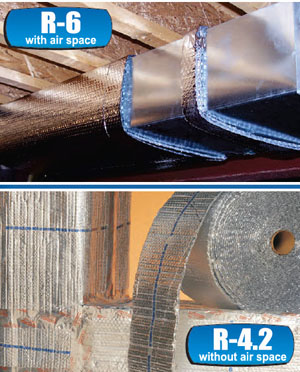

R-4.2 (without spacers)
R-6.0 (with bubble spacers)
EMISSIVITY
ASTM C1371
0.04
REFLECTIVITY
ASTM E903
0.96
WATER VAPOR PERMEABILITY
ASTM E96
<0.02 Perms
RESISTANCE TO FUNGI & BACTERIA
ASTM C1338
DOES NOT PROMOTE GROWTH
FIRE RATING - FULL ROOM BURN TEST
NFPA 286
PASSES


rFOIL™ R-4.2 and R-6 Reflective Duct Wrap Insulation

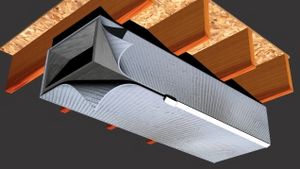

rFOIL™ R-4.2 Reflective Duct Wrap Insulation (Direct Wrap)


rFOIL™ R-4.2 and R-6 Reflective Duct Wrap Insulation

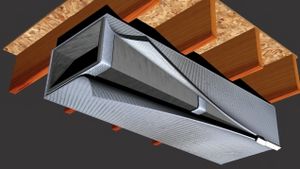

rFOIL™ R-6 Reflective Duct Wrap Insulation(with Spacer Strips)
