rFOIL BIG 6™ Reflective Duct Wrap Insulation

rFOIL BIG 6™ Reflective Duct Wrap Insulation

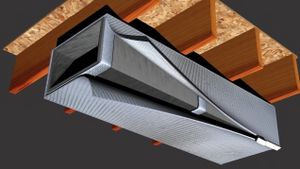

rFOIL™ Reflective Duct Insulation is a 5/16” layer of polyethylene bubble, bonded to and sandwiched between two radiant barrier sheets.

rFOIL™ is specially designed to reduce radiant heat gain/loss in all residential and commercial duct applications. rFOIL™ also helps control condensation by providing an airtight thermal break around ductwork. rFOIL™ Reflective Duct Insulation increases system efficiency, lowers stress on HVAC equipment, reduces energy usage and utility bills.

Applications:

  • Duct wrap insulation
  • Suitable for all duct types
  • Residential and commercial
  • R-6 code requirements

Benefits:

  • Meets R6 insulation code requirements
  • Pre-attached spacers simplifies installation
  • Clean, safe, environmentally friendly
  • No exposure to hazardous glass fibers
  • No special clothing or breathing equipment required
  • Greatly improves HVAC system efficiency
  • Reflective and low-emissive surfaces provide unmatched thermal performance
  • Greater thermal performance with less material thickness
  • Stops virtually all heat from radiating inward or outward from sheet metal duct systems
  • Improves indoor air quality prevents glass fibers, dust, and other airborne particles from entering ductwork
  • Aluminum metalized surfaces tremendously limit heat transfer, in ways not measured by R-values
  • Lowers run-time and increases lifespan of heating and cooling systems
  • Impermeable thermal core provides ultimate condensation control
  • Will not harbor mold, mildew or other fungi


SPECIFICATIONS


Physical Properties
Test
BIG -6 (Indoor Use)
2260 Series (Metalized Foil)
NOMINAL THICKNESS
5/16"
WEIGHT
1.25 oz / sq. ft.
TEMPERATURE RANGE
ASTM C411
-50°F to 180°F
FIRE RATING
ASTM E84-09
CLASS 1 / CLASS A
THERMAL RESISTANCE
ASTM C335
R-6.0 (with attached bubble spacers)
EMISSIVITY
ASTM C1371
0.04
REFLECTIVITY
ASTM E903
0.96
WATER VAPOR PERMEABILITY
ASTM E96
<0.02 Perms
RESISTANCE TO FUNGI & BACTERIA
ASTM C1338
DOES NOT PROMOTE GROWTH
FIRE RATING - FULL ROOM BURN TEST
NFPA 286
PASSES
