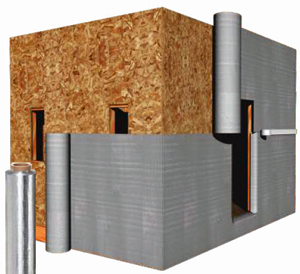

rFOIL™ 3800 Series Reflective House Wrap

rFOIL™ 3800 Series Reflective House Wrap

rFOIL™ Reflective House Wrap is the next generation in house wrap technology. This revolutionary new product offers the construction industry a strong weather-resistant barrier with the added benefit of a radiant barrier (a tested R-3.8 value (ASHRAE Handbook: 1997 Fundamentals) and a perm. Rating of 22).

rFOIL™ Reflective House Wrap is a single layer of 99.9% pure aluminum foil laminated to a formulated blend of polyethylene and pin perforated. This results in a house wrap that acts not only as a superior air infiltration barrier (effectively sealing up cracks or gaps in the external sheathing) but it also adds a radiant barrier to the exterior of the home, blocking up to 96% of radiant heat. This results in better year round efficiency and comfort levels. Unlike other house wraps or traditional products, Reflective House Wrap is non-toxic and its performance is not affected by extended exposure to the elements.

Applications:

  • Houses
  • Any other framed structures

Benefits:

  • Increases wall insulation efficiency by 20%
  • Blocks 97% of radiant heat transfer
  • Reflects heat out in summer, reducing air conditioning costs
  • Reflects heat back inside in winter, reducing heating costs
  • Increases overall home comfort


SPECIFICATIONS


PHYSICAL PROPERTIES
TEST METHOD
VALUE
NOMINAL THICKNESS
0.011"|
FIRE RATING
ASTM E84-09
CLASS 2 / CLASS B
THERMAL RESISTANCE
ASTM C335
R-3.85
EMISSIVITY
ASTM C1371
0.03
REFLECTIVITY
ASTM C1371
0.97
WATER VAPOR PERMEABILITY
ASTM E96
22 Perms
WATER RESISTANCE
ASTM D779
0.4 kPa
AIR LEAKAGE RATE
TAPPIT 460
3.5 sec. /100 ml
TENSILE AND ELONGATION
ASTM D882-97
Machine Direction: 15 MPa
Cross Direction: 16 Mpa
TRAPEZOID TEARING
ASTM D1117
Machine Direction: 24 N
Cross Direction: 27 N
BURST RESISTANCE
ASTM D751
110 kPa
LINEAR SHRINKAGE
ASTM D1204
NONE
PLIABILITY
CAN/CGSB-51.33-M89
NO CRACKING
RESISTANCE TO FUNGI & BACTERIA
ASTM C-1338-2000
DOES NOT PROMOTE GROWTH


rFOIL™ 3800 Series Reflective House Wrap - Under Vinyl Siding (Furring Strips Over rFOIL Insulation)

rFOIL™ 3800 Series Reflective House Wrap (Exterior Wall Construction)

rFOIL™ 3800 Series Reflective House Wrap (Over Insulation with Furring Strips)

rFOIL™ 3800 Series Reflective House Wrap (Wrapped Between Studs)

rFOIL™ 3800 Series Reflective House Wrap- Under Vinyl Siding (Directly Over rFOIL Insulation)

rFOIL™ 3800 Series Reflective House Wrap- Under Vinyl Siding (Furring Strips Over rFOIL Insulation)
