rFOIL™ 2600 Series Reflective Insulation for Metal Buildings

rFOIL™ 2600 Series Reflective Insulation for Metal Buildings

Ultra MBI Metal Building Insulation 2600 Series

rFOIL™ reflective insulation is a single or double layer of polyethylene bubbles bonded to and sandwiched between a radiant barrier metalized foil and white polyethylene sheet. rFOIL is specifically designed to control heat gain or loss, and prevent interior condensation, in all types of metal and metal-clad buildings.

Applications:

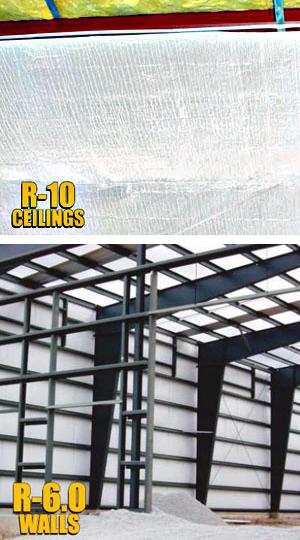

  • Pre-engineered steel buildings
  • Post frame / pole barns
  • Agricultural buildings
  • Residential metal roofs
  • Mini storage
  • Livestock confinement

Benefits:

  • Blocks 96% of radiant heat transfer
  • Prevents interior condensation
  • Class 1 / Class A fire-rated (ASTM E84-09 / ASTM E2599-08)
  • Passes NFPA 286 Full Room Burn Test
  • Puncture and tear resistant
  • Unaffected by humidity
  • Will not promote mold and mildew
  • Safe, non-toxic and non-carcinogenic
  • Easy to handle and install
  • Various tab options
  • UV-resistant


SPECIFICATIONS


Physical Properties
Test
Double Layer        Single Layer
NOMINAL THICKNESS
5/16"        3/16"
FIRE RATING
ASTM E84-09 / ASTM E2599-08
CLASS 1 / CLASS A
FIRE TESTING
NFPA 286
PASSES
EMISSIVITY
ASTM C1371 -04A
0.04        0.04
REFLECTIVITY
ASTM E903
0.96        0.96
WATER VAPOR PERMEABILITY
ASTM E96
0.42 Perms        0.01 Perms
RESISTANCE TO FUNGI & BACTERIA
ASTM C1149
DOES NOT PROMOTE GROWTH
PLIABILITY
ASTM C1224-03
NO CRACKING
BLEEDING AND DELAMINATION
ASTM C1224-03
NO BLEEDING OR DELAMINATION
CORROSIVENESS
ASTM D3310-00
PASSES
UV TESTING
ASTM G155
4000hrs Exposure 90+% Retain Retention
