rFOIL™ 1620 Series Ultra CBF Concrete Barrier Foil Reflective Insulation

rFOIL™ 1620 Series Ultra CBF Concrete Barrier Foil Reflective Insulation

Ultra CBF is an outstanding reflective insulation and puncture-resistant vapor barrier. Ultra CBF is composed of a single layer reflective sheet, laminated between two layers of ultra-strong polyethylene bubble (up to 140 psi).

Ultra CBF is the ultimate under-slab insulation. It provides exceptional thermal value and a strong, permanent vapor and radon barrier. Ultra CBF typically costs less than 2” rigid PE board insulation. Ultra CBF is easier to handle, cut, and install than rigid foam insulation, yet has nearly six times the compression strength.

Applications:

  • Insulating under concrete slabs
  • In-floor radiant heating
  • Beneath concrete over-pours
  • Edge-slabs and expansion joints
  • Outside foundation walls
  • Snow melting systems
  • Under carpet

Benefits:

  • Reduces radiant heat loss, making floors warmer and more comfortable
  • Multi-layer vapor and radon barrier (14.2 mil)
  • Cost-effective alternative to rigid foam insulation
  • Improves efficiency of in-floor radiant heating systems
  • Saves energy usage and utility costs
  • Easy to form around obstructions and conforms easily to uneven grades
  • Installs easily over any grade
  • Withstands job site traffic


SPECIFICATIONS


Physical Properties
Test
Value
NOMINAL THICKNESS
5/16"
WEIGHT
1.16 oz/sq.ft.
TEMPERATURE RANGE
ASTM C411
-50°F to 180°F
EMISSIVITY
ASTM C1371 -04A
43%
REFLECTIVITY
ASTM E903
57%
COMPRESSION STRENGTH
ASTM 0751
140 psi
TENSILE STRENGTH
CAN/CGSB - 51.33-M89
21.13 lbs/sq. in.
DEFLECTION
ASTM 1621
<10% under 0.5 PSI
PUNCTURE RESISTANCE
85 lbs/sq. in.
WATER VAPOR PERMEABILITY
ASTM E96, ONGC 51.33-M89
<0.01 Perms
RESISTANCE TO FUNGI & BACTERIA
ASTM C1338
DOES NOT PROMOTE GROWTH
LINEAR SHRINKAGE
NONE
FLEXIBILITY
CAN/CGSB - 51.33-M89
NO CRACKING


rFOIL™ 1620 Series Ultra CBF Concrete Barrier Foil Reflective Insulation

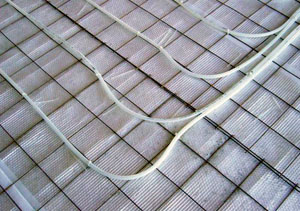

rFOIL™ 1620 Series Ultra CBF - Radiant Heating In Snow Melt


rFOIL™ 1620 Series Ultra CBF Concrete Barrier Foil Reflective Insulation

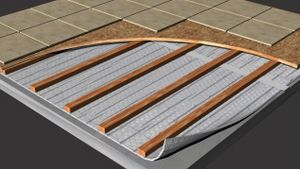

rFOIL™ 1620 Series Ultra CBF - Under Wood Sub-Floor


rFOIL™ 1620 Series Ultra CBF Concrete Barrier Foil Reflective Insulation

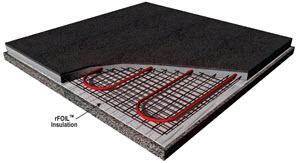

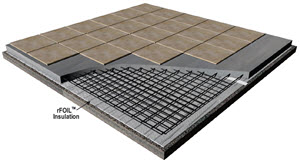

rFOIL™ 1620 Series Ultra CBF - Under Concrete Slab R-3.8


rFOIL™ 1620 Series Ultra CBF Concrete Barrier Foil Reflective Insulation

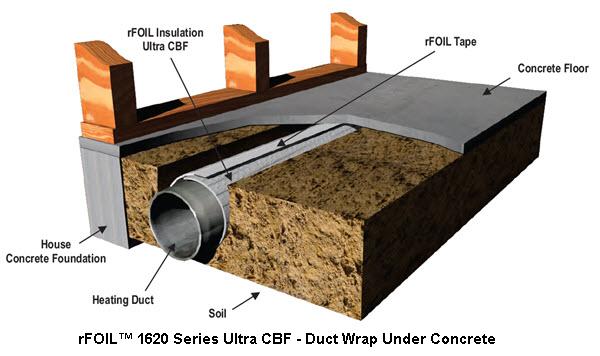

rFOIL™ 1620 Series Ultra CBF - Duct Wrap Under Concrete
