Overview

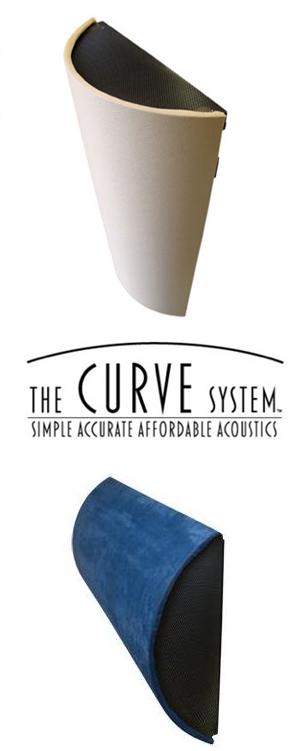

The CURVE System™ - Acoustical Diffusers, Absorbers, and Corner Traps for Walls & Ceilings

The CURVE System - Acoustical Diffusers, Absorbers, and Corner Traps for Walls & Ceilings

Diffusors, Absorbers, and Corner Traps simplify the creation of natural-sounding, professionally-accurate acoustic spaces

Product Features:

  • Diffusor reduces narrow reflections and frequency-dependent modes; eliminates parallel-surface flutter echos; includes MLV membrane bass trap
  • Absorber evenly absorbs frequencies from 200-20,000kHz
  • Corner trap reduces low-frequency corner room modes
  • Diffusor and Corner Trap act as diaphragmatic low-mid-frequency absorbers
  • No fiberglass or foam – uses safe “green” absorbent lining (recycled cotton)
  • Affordable & easy to install – mounting cleats and hardware included
  • Diffusor does not exhibit phase-grating (quadratic-residue) diffusor artifacts – no phase or frequency distortion, no high-frequency limitations
  • Professionally attractive, with many fabric, color, and finish options
  • 42" length allows vertical stacking and alternating vertical/horizontal orientation on walls and ceilings; alternating different widths avoids comb filtering artifacts

APPLICATIONS: Wherever sound is important – recording, overdubbing & mixing studios; home theaters & music rooms; broadcast booths & control rooms; video studios & post-production suites; film stages & Foley/FX studios; churches; offices; meeting, conferencce & board rooms; rehearsal & performance spaces; concert halls; nightclubs; retail stores; bars & restaurants; coffee shops; classrooms & gymnasiums; museums & galleries
COLORS: A wide range of standard colors & custom colors are available.
SIZES: All 42" in height; custom heights available


The CURVE System™ - Acoustical Diffusers, Absorbers, and Corner Traps for Walls & Ceilings

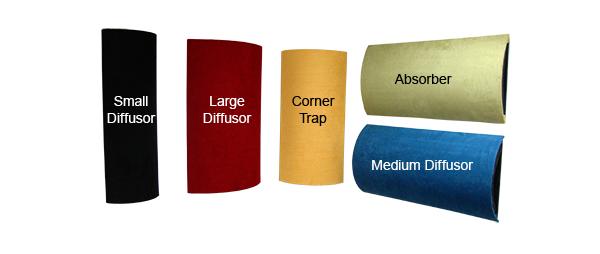

DIFFUSORS:
(all with MLV membrane) Absorbs 40-300Hz, diffuses 300-20kHz
Large – 30" w × 10" d
Medium – 21" w × 7" d
Small – 12.5" w ×5 " d

Absorber:
Absorbs 200-20kHz
21" w × 4.5d

Corner Trap:
(Medium Diffusor with corner trap) Absorbs 40-300Hz, diffuses 300Hz-20kHz
21" w × 18" d

STOCK COLORS: Black, Silver-Grey, Tan, Red, Blue – Custom colors & wood veneer finishes available.
OPTIONS: Floor stand legs (1 pair per Curve – includes attachment hardware)

The CURVE System is a simple, accurate, and affordable way to achieve natural-sounding acoustics.
