Overview



Silk Metal Ceiling and Wall System

Silk Metal Ceiling and Wall System

Silk Metal


Micro-Perforated Acoustical Ceiling & Wall Panels


Features

  • Tegular Lay-in Ceilings
  • Flat Lay-in Tiles
  • Anodized & Custom Printing Available
  • Cost-Effective
  • Installs into Standard 15/16" Grid
  • Custom Wall Panels
  • Excellent NRC Rating – 0.80 NRC (per ASTM C423) with a 4" Airspace, No Liner Needed

Applications

  • Restaurants
  • Pro Audio/Studios
  • Home Theaters
  • Ceilings
  • Walls
  • Hallways
  • Public Spaces
  • Swimming Pools
  • Cafeterias
  • Shopping Malls
  • Offices
  • Conference Rooms
  • Classrooms
  • Hospitals
  • Lobbies
  • Department Stores
  • Exhibition Spaces
  • Train Stations
  • Airports
  • Concert Halls
  • Night Clubs
  • Practice Rooms


Silk Metal Ceiling and Wall System


Silk Acoustical Metal Panels

  • Achieves acoustical value without acoustical liner
  • Resembles smooth fabric surface in appearance

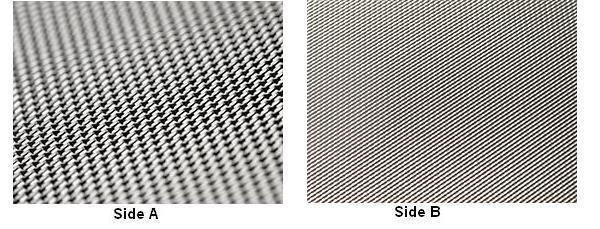

  • Reversible surfaces
  • Can be fabricated into various forms & sizes
  • Tested as a “sheet good” to prove its electromagnetic wave attenuation characteristics
  • The only surface material that has been tested to prove its AEMIC (acoustical & electromagnetic interference control) capabilities

Silk Metal uses a patented angled micro-perforation method rather than traditional direct 90° punching methods. Silk Metal features an ideal surface to absorb wave energy generated by sound and electromagnetic waves, and for heat mitigation.


Silk Metal Ceiling and Wall System



Silk Metal Ceiling and Wall System

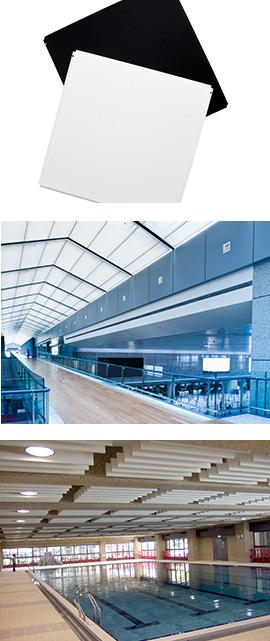

Lay-in System

Appearance: Flat or Tegular
Stock Colors & Sizes:
23¾" × 23¾", White – 3/8" – Tegular Edge
23¾" × 23¾", Black – 5/8" – Tegular Edge

Maximum Panel Size
26¾" × 78¾"

Models

Silk Acoustical Metal Ceiling Tile - Flat Edge
Silk Acoustical Metal Ceiling Tile - 3/8" Tegular Edge
Silk Acoustical Metal Ceiling Tile - 5/8" Tegular Edge


Silk Metal Ceiling and Wall System

Standard 15/16" Grid Options


Silk Metal Ceiling and Wall System

Silk Metal Ceiling Tile – Sound Absorption Coefficients
 125Hz250Hz500Hz1KHz2KHz4KHzNRC
Silk Metal0.860.940.650.770.760.750.80


Silk Metal Ceiling and Wall System
