Overview

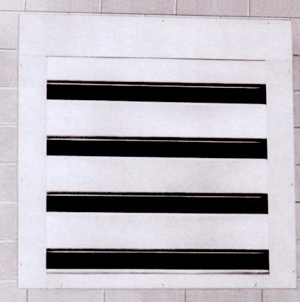

Silent-Mod Acoustical Louver™

Silent-Mod Acoustical Louver

Designed to provide the maximum noise reduction obtainable in short depth while still giving an effective combination of privacy and weather protection.

Silentflow louvers are for use in installations such as process air intakes, fresh air intakes for ventilation systems, mechanical equipment screens, cooling tower inlets, etc.

Constructed to meet architectural standards, Silentflow is available in two models in 54 sizes, providing a wide range of pressure-drop and acoustical-performance requirements.

Product Specs


Materials

Out Casings – 16 Gauge Galvanized Steel

Internals – 22 Gauge Galvanized Steel

Bird Screens – ½″ Mesh Galvanized Screen (Insect Screening Available)

Fill – Water Resistant Resin Bonded Fiberglass

ConstructionTop surface Solid, Bottom Surface Absorptive, Water Stops on Upper Surface
Standard SizesFrom 24″×12″ to 48″×120″

Silent-Mod Acoustical Louver – Acoustical Performance
125Hz
250Hz
500Hz
1KHz
2KHz
4KHz
8KHz
DIL-MODEL A
6
11
15
18
18
16
12
DIL-MODEL B
3
7
9
12
10
9
7
