Overview

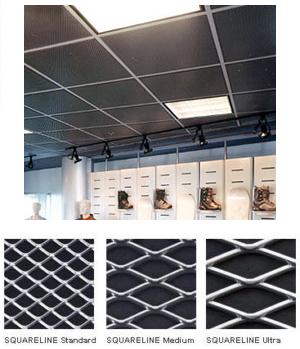

SQUARELINE™ Acoustical Metal Ceiling Tiles

SQUARELINE Acoustical Metal Ceiling Tiles

  • Expanded Metal
  • Decorative – High Style
  • Fiber Free
  • Excellent Sound Absorption Qualities
  • Affordable and Easily Installed

MATERIAL: Expanded perforated metal with melamine foam backing.
PATTERN: Standard, Medium and Ultra
FEATURES: Expanded metal design.
APPLICATIONS: Offices, conference rooms, board rooms, airports, lobbies, convention centers, retail stores.
THICKNESS: .25" or .50"
SIZES: Nominal 24"×24", 24"×48"

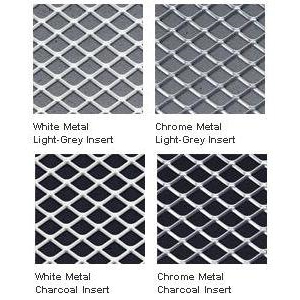

COLOR: White metal, chromed metal with colored backing inserts (light gray, charcoal gray and white)
FLAMMABILITY: Class 1 fire-rated for smoke density and flame spread.
INSTALLATION: Lay-in 15/16" T-bar grid system. Slight tegular edge.


SQUARELINE™ Acoustical Metal Ceiling Tiles

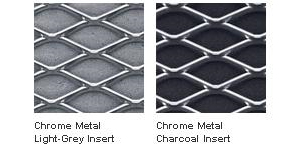

SQUARELINE Standard

Options: White or Chrome Metal with Light-Grey or Charcoal Insert
Profile: Flat or Beveled Profile
Panel Sizes: 24"×24"
Open Surface: 68.2%


SQUARELINE™ Acoustical Metal Ceiling Tiles

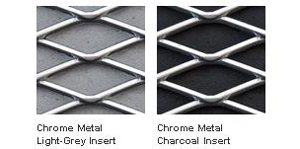

SQUARELINE Medium

Options: White or Chrome Metal with Light-Grey or Charcoal Insert
Profile: Flat profile ONLY
Panel Sizes: 24"×24" or 24"×48"
Open Surface: 62.5%

**NOTE*** 50 tile minimum order requires 12-14 week lead time


SQUARELINE™ Acoustical Metal Ceiling Tiles

SQUARELINE Ultra

Options: White or Chrome Metal with Light-Grey or Charcoal Insert
Profile: Flat profile ONLY
Panel Sizes: 24"×24", 24"×48" or 48"×48"
Open Surface: 71.4%

**NOTE*** 50 tile minimum order requires 12-14 week lead time


Sound Absorption/Noise Reduction
  125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
0.25" Thick0.370.590.300.500.751.090.55
0.50" Thick0.400.630.430.600.770.890.61

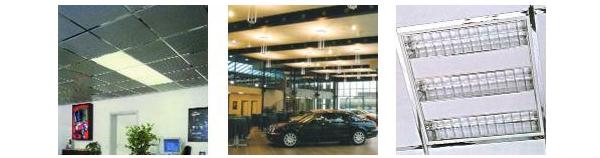

Lighting Options

Lighting can be combined with both WHITELINE and SQUARELINE Ceiling Tiles.
