Overview

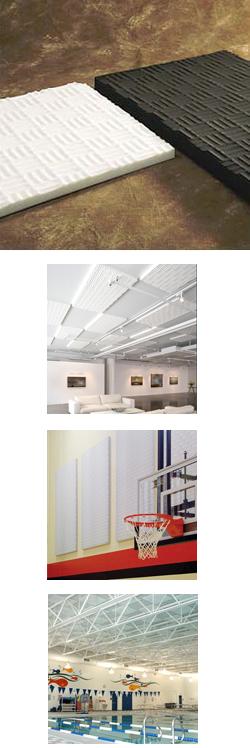

SONEX Valuline Melamine Foam Acoustical Panels

SONEXvaluline Melamine Foam Acoustical Baffles

Melamine Foam Acoustical Panels

  • Fiber Free
  • High Performance
  • Subtle Texture
  • Lightweight

MATERIAL: Melamine Acoustical Foam
PATTERN: Shallow Control Surface
FEATURES: High acoustical performance in mid frequency noise range
APPLICATIONS: Industrial applications, offices, broadcasting and recording studios for effective reverberation and reflected noise control.
THICKNESS: 1-1/2", 1-7/8", 2-1/2"
SIZES: 2'×4'
DENSITY: 0.7lbs/cub. ft.
STANDARD COLORS: White, Grey
OPTIONAL HPC-COATED COLORS: Black, Light Grey, White, Almond, Medium Grey, Light Blue, Ivory
CUSTOM COLORS: Please contact us to discuss custom color options.
FLAME SPREAD per ASTM E84: Class A. Natural: 5; Painted: 10; HPC-Coated: 15
SMOKE DENSITY per ASTM E84: Class A. Natural: 50; Painted: 10, HPC-Coated: 150
INSTALLATION: ASI S.T.O.P. Noise Acoustical Adhesive



Sound Absorption per ASTM C-423-902
Thickness Finish 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
1-1/2"Natural0.080.290.730.940.970.890.75
1-1/2"Painted0.060.340.791.021.000.980.80
1-7/8"Natural0.170.551.071.151.081.100.95
1-7/8"Painted0.190.551.171.211.151.131.00
2-1/2"Natural0.190.621.151.211.141.201.05
2-1/2"Painted0.200.661.201.191.121.121.05
