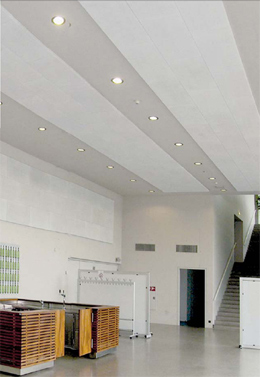

PHONSTOP™ Acoustical Ceiling and Wall Tiles - Recycled Glass

PHONSTOP Acoustical Ceiling and Wall Tiles - Recycled Glass

  1. Made from 100% Recycled Glass
  2. Exceptional Acoustical Properties
  3. Two Styles – Adhere to Walls and Ceilings or Lay-In Standard 15/16″ Ceiling Grid System
  4. PHONSTOP Plaster provides a seamless appearance
  5. Can be custom colored on-site using non-bridging paints

PHONSTOP Ceiling and Wall Tiles are made from 100% recycled glass, sintered to form rigid, lightweight and porous sound absorbers. PHONSTOP products have exceptional acoustical properties and are easy to install indoors or outdoors.

Product Specs


Material

PHONSTOP Ceiling and Wall Tiles are made from 100% recycled glass sintered to form rigid, lightweight
and porous sound absorbers. Tiles are ASTM 84 Class 1 (A) fire-rated and offered for adhesive (PHONSTOP V) and lay-in ceiling grid (PHONSTOP E) applications.

Other PHONSTOP Products Include:
PHONSTOP pa81 or pa101 Adhesive (pa81 for concrete, masonry and drywall; pa101 for plywood
and metal surfaces)
PHONSTOP pa85 Plaster (for seamless, monolithic appearance)
PHONSTOP pt17 Primer
PHONSTOP pt13 Sealer (for weather-exposed conditions)

Size

PHONSTOP V – Adhesive Applications on Walls and Ceilings

24″ ×24″ ×2″ Thickness (610×610×50mm)
24″ ×48″ ×2″ Thickness (610×1220×50mm)
Tiles offer two edge options: One face of the tiles feature 3/8″ (9 mm) chamfer beveled edges, while the
reverse face has square edges.

PHONSTOP E – Ceiling Grid Applications
24″ ×24″ ×1″ Thickness Nominal (604×604×25mm)
24″ ×48″ ×1″ Thickness Nominal (604×1213×25mm)
Slightly Beveled Square Edge

Installation

PHONSTOP V

Adheres directly to walls or ceilings
Roll on PHONSTOP pt17 Primer to existing substrate. Apply PHONSTOP pa81 or pa101 Adhesive using
3/8″ tooth trowel to the back of each tile (be careful not to get adhesive on the visible tile face)

Create a seamless, monolithic appearance by using the square edge tile face and rolling on a layer of PHONSTOP pt17 Primer; then trowel two layers of
PHONSTOP pa85 Plaster

In outdoor, weather-exposed conditions, apply PHONSTOP Sealer for added durability

PHONSTOP E
Lay-in standard 15/16″ ceiling grid system Sound Absorption Material 100% recycled glass


Physical Data
Material100% Recycled Glass
Density (ASTM D1622-08)16.79 lbs./ft
Fire Resistance (ASTM E 84)Class 1
Flame Spread (ASTM E 84)0
Smoke Density (ASTM E 84)0
Compression Strength165 psi
Thermal Resistance (ASTM C518-04)Effective R Value 3.24

Noise Reduction Coefficient – Phonstop
DescriptionFrequency (Hz)
125250500100020004000NRC
PHONSTOP V – Test ASTM C423-90a – Mounting Type A
2″ (50 mm) –
Adhered & Painted
0.140.601.090.961.021.30.90
2″ (50 mm) –
Adhered Without
Space Between
Tiles
0.160.631.150.910.980.990.90
2″ (50 mm) –
Adhered &
Plastered
0.260.750.860.620.660.570.70
PHONSTOP E – Test ASTM C423-90a – Mounting Type E
1″ (25 mm)0.450.550.600.750.800.850.70
