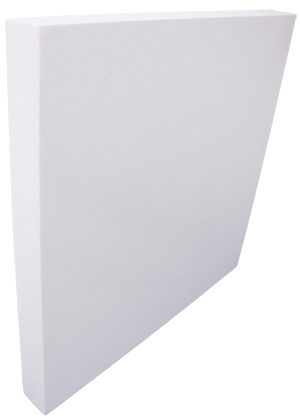

New Dimensions Acoustical Wall Panels

New Dimensions Acoustical Wall Panels

  1. Excellent Acoustical Absorption
  2. Finished Look
  3. Fiberglass Core

New Dimensions Acoustical Wall panels are designed for areas requiring excellent acoustical absorption with a ‘drywall’ look. Applications include conference rooms, auditoriums, churches, entryways, and other areas requiring both sound absorption and a high quality custom painted finish.

The core construction is dimensionally stable glass fiberboard laminated with a molded glass fiber, all covered with a specially formulated fiberglass mat. Edges are protected with resin hardening. The acoustically transparent painted finish completely covers the face and exposed edges.

New Dimensions Acoustical Wall panels utilize fiberglass board core that is eligible to bear the Green Cross label for recycled content. The board is certified on average to contain at least 35% recycled glass, with 9% post-consumer and 26% pre-consumer content.

And for your LEED project, our acoustical panels can help you qualify for recycled content points under the Materials and Resources section. Other LEED categories may also apply depending upon the project requirements.

Product Specs


Material     6-7 PCF Glass Fiberboard Laminated with 1/16″ 16-20 PCF Molded Glass Covered With Fiberglass Mat
Thickness     1″ , 1-1/2″ , 2″ , 3″ , and 4″ (Plus 1/16″ molded glass fiberboard.)
Sizes     4' × 12' Maximum (4' × 10' maximum for 1-1/2″ thickness)
Edge Detail     Resin Hardened, unless otherwise specified. Edge shapes include: square, radius, and bevel.
Finish     Factory-finished in a variety of colors, including white. Custom colors are offered to precisely
match any interior design palette.
Mounting     Standard mountings include spot and perimeter adhesive, Z-clip, concealed splines, impaling clips,
hook & loop, and magnetic fasteners.
Acoustical Performance

1-1/16″ Thickness NRC – .85;
2-1/16″ Thickness NRC – .90
(Derived from tests conducted according to ASTM C 423 on a Type D5 mounting by a NVLAP
accredited laboratory.)

Fire Performance     Each component has been tested according to ASTM E 84 and has a Class I/A rating.
R-Value     The R-Value is resistivity to heat or cold.
1″ – 4.1
1½″ – 6.2
2″ – 8.3
3″ – 12.5
4″ – 16.6
Recycled Content     Fiberglass board core contains on average 35% recycled glass, with 9% post-consumer and 26% pre-consumer content.
