Overview

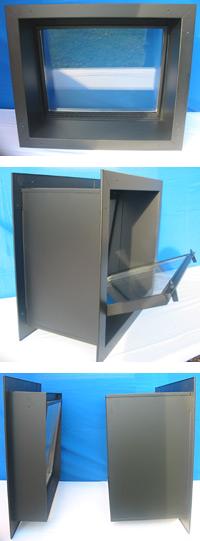

NOISE S.T.O.P.™ Acoustical Windows for Home Theaters/Cinema Ports

NOISE S.T.O.P. Acoustical Windows for Home Theaters/Cinema Ports

Affordable, Easy To Install Acoustical Windows For Recording Studios or Projection Ports for Movie Theaters

  1. 14 Gal. Welded Steel Construction
  2. 2-piece Telescoping Frames Adapt From 4″ to 16″ Wall Thickness
  3. Dual Pane Angled Insulated Glass Panels Factory Installed With Dual Isolation Media To Obtain Maximum Sound Attenuation As Well As Unwanted Reflections
  4. Glass Options Offered In Standard Plate, Opti-White & Double Optically Coated High Performance
  5. Hand Operated Hinged Glass Frame For Ease Of Cleaning & Testing From Between Sound Booths
  6. Elastomeric Seals Isolate Frame From Wall To Eliminate Resonate Noise
  7. Matte Black, Low Glare Powder Coat Finish
  8. Clear & Simple Installation Instructions & Hardware Included

Stack multiple windows next to each other for a larger viewing area.


NOISE S.T.O.P.™ Acoustical Windows for Home Theaters/Cinema Ports

20″×24″ Soundproof Window

Rough Opening Size:20″ H × 24″ W
Clear Glass Area:17″ H × 22 ″ W


NOISE S.T.O.P.™ Acoustical Windows for Home Theaters/Cinema Ports

20″×20″ Soundproof Window

Rough Opening Size:20″ H × 20″ W
Clear Glass Area:17″ H × 18″ W

Window Features:

  1. Wall Thickness: 4″ – 16″
  2. Dual Pane Insulated Glass Unit Factory Installed
  3. Hand Operated Hinged Glass To Allow For Easy Cleaning & Audio Testing
  4. Factory Prepared For Hardware Free Shelf & Accessories
  5. Installation Instructions & Hardware Included
