Overview



Mass Loaded Vinyl Noise Barrier - (MLV)

Mass Loaded Vinyl Noise Barrier - (MLV)

NOISE S.T.O.P. VINYL BARRIER

  • Reduces
  • Sound Transmission
  • Contains Noise
  • Improves Communications
  • Improves Health & Safety

When noise and sound transmission needs to be effectively controlled, Mass Loaded Vinyl Noise Barrier is the solution to build noise barriers and soundproof walls.

MATERIAL: Mass Loaded Vinyl Barrier
PATTERN: Smooth Finish
FEATURES: High density limp material to reduce noise transmission.
APPLICATIONS: Reduced noise transmission through ceilings, walls, floors, machinery enclosures, ductwork. Apply over suspended ceilings on studs or joists.
THICKNESS: 1/16" – 1/2 lb/sf; 1/8" – 1 lb/sf; 1/4" – 2 lb/sf
SIZES: 54" Wide × 20', 30', or 60' Rolls – 2'×2', 2'×4' Sheets, Die Cutting Available
COLOR: Black, Grey (Reinforced), Tan and Clear (Transparent or Translucent)
FLAMMABILITY: UL 94VO
INSTALLATION: Material can be nailed, screwed, stapled or can be reinforced and grometted and hung like a curtain.

Models

1/16″ Mass Loaded Vinyl Noise Barrier
1/8″ Mass Loaded Vinyl Noise Barrier
1/4″ Mass Loaded Vinyl Noise Barrier

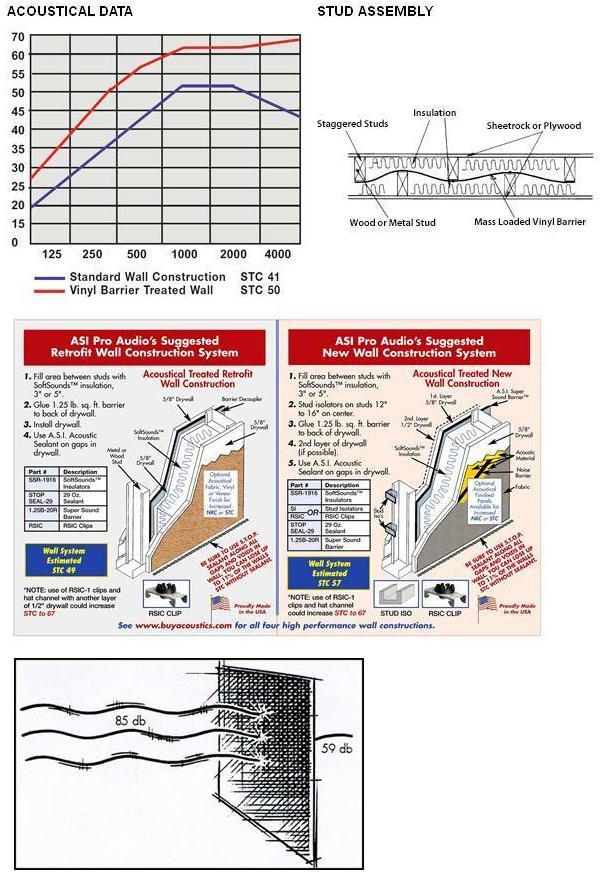

Noise Transmission Loss (dB) Per Octave Band (HZ)
Barriers 125 250 500 1000 2000 4000 STC
2 lb. PSF16222632354031
1.25 lb. PSF14182427333828
1 lb. PSF13172226323727
1/2 lb. PSF8131722273120
