Overview

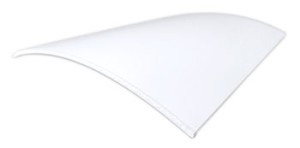

Mass Loaded Vinyl Barrier

Mass Loaded Vinyl Barrier

Plenum (Class A) 1.0 lb. Non-Reinforced

  1. Reduces Sound Transmission
  2. Contains Noise
  3. Improves Communications
  4. Improves Health & Safety

When noise and sound transmission needs to be effectively controlled, Mass Loaded Barrier is a great solution for soundproofing walls and ceilings.

Product Specs


MaterialMass Loaded Vinyl Barrier
PatternSmooth Finish
FeaturesHigh density limp material to reduce noise transmission.
ApplicationsReduced noise transmission through walls, ceilings, floors, pipes, HVAC ducts, office partition walls, computer server rooms, mechanical rooms, machinery enclosures.
Thickness1/8″
Sizes48" Wide × 20'
Tensile Strength625 PSI
Flammability

ASTM E-84

Flame Spread Index (FSI) ≤ 25

Smoke Developed Index (SDI) ≤ 50

InstallationCan be nailed, screwed, stapled or can be reinforced and grometted and hung like a curtain.
Sound TransmissionASTM E-90 (90A)


TestTest MethodStandard
Density/Weight
ASTM D412
1.0 lb per SF
Tensile Strength
ASTM D412
625 PSI
Die “C” Tear
ASTM D412
125 lbs
Shore A Durometer
ASTM D2240
89 ± 5
Elongation
ASTM D412
90%
Burn Tests
ASTM E-84
Flame Spread Index ≤ 25
Smoke Developed Index ≤ 50
Service Temperature
-20°F-180°F
Sound Transmission Class (STC)
ASTM E 90 (90A)
26
