Machine Enclosures - Absorptive/Noise Barrier Quilted Curtains

Machine Enclosures - Absorptive/Noise Barrier Quilted Curtains

CURTAIN S.T.O.P.

  • Equipment Enclosures
  • Cost Effective Room Dividers
  • Water & Chemical Resistant
  • ExteriorvApplications

MATERIAL: Melamine Foam or fiberglass core, faced with quilted aluminized fabric. Optional Noise Barrier Septum.
PATTERN: Quilted Diamond Pattern
FEATURES: Effective and durable sound absorber with mass loaded vinyl barrier option.
APPLICATIONS: Used as an economical, effective noise barrier and sound absorber to enclose many types of noise sources or work areas. The curtains can be custom fabricated to almost any applicaton. Can be used in exterior applications, waste water treatment facilities, industrial, commercial & residential applications.
THICKNESS: 1", 2", 3", 4"
SIZES: 48" & 54" Wide; Lengths up to 25' (Custom Sizes Available)
COLOR: Silver (Other colors available upon request)
FLAMMABILITY: ASTM E84, Class A. Flame Spread: 23; Smoke Developed: 30
INSTALLATION: Hook and loop fasteners, grommet hangers, curtain spanport hardware.


CURTAIN S.T.O.P. – Sound Transmission Loss – ASTM E90
Frequency 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz STC
1" Thick w/ Barrier11162430353527
2" Thick w/ Barrier13202940505532

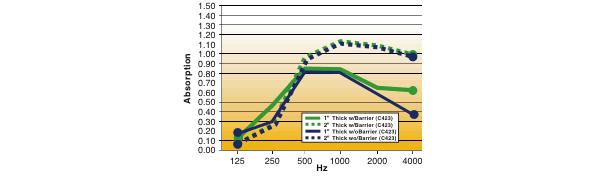

CURTAIN S.T.O.P. – Sound Transmission Loss – ASTM C423
Frequency 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
1" Thick w/ Barrier0.120.470.850.840.640.620.70
2" Thick w/ Barrier 0.190.990.960.800.570.330.85
1" Thick w/o Barrier 0.120.470.850.840.640.620.70
2" Thick w/o Barrier 0.190.990.960.800.570.330.85
