Overview



Isolation Hangers™

Isolation Hangers

Features:

  1. Permanently Resilient Fiber Glass Isolator Pad
  2. Constant Natural Frequency in Wide Load Range
  3. Load Capacities 20 lbs. to 200 lbs. (9 kg to 91 kg)
  4. 500% Overload Fail-Safe Assembly

Specifications:

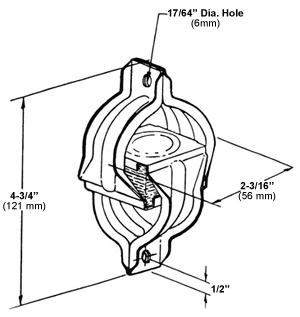

Hangers shall consist of a fiber glass isolator encased in an anti-short circuit reinforced steel bracket which will accommodate up to #8 suspension wire or a 1/4″ (6.35 mm) bolt or screw.

The fiber glass isolator shall be 1″ (25 mm) thick, precompressed, molded fiber glass composed of fiber glass produced by a multiple flame attenuation process which generates nominal fiber diameters not to exceed 0.00022″ (5.6 microns) and shall have been stabilized by precompression ten (10) times to three (3) times the maximum rated load of the material used.

The hanger assembly shall be zinc-plated reinforced steel and shall carry a five (5) times maximum rated load overload without failure. Hangers shall be Model AF.

Isolation Hangers
Hanger
Load Range
Maximum Deflection
AF-100
20-100 lbs
0.27″
9-46 kg
6 mm
AF-200
50-200 lbs
0.18″
23-91 kg
4 mm
