Overview



Fabric Wrapped Acoustical Baffles

Fabric Wrapped Acoustical Baffles

NOISE S.T.O.P. FABRISORB

Decorative Fabric Wrapped Acoustical Baffles

  • High Performance
  • Architecturally Decorative
  • Custom Engineered & Manufactured


Fabric Wrapped Acoustical Baffles

Type 1

Construction: One piece lightweight 7PCF fiber core with square or radius edges and covered on all sides with fabric.
Moutning: Eyehooks
Thickness: 1", 1-½", 2"

Models

Type 1 Acoustical Baffle - 1"
Type 1 Acoustical Baffle - 1-1/2"
Type 1 Acoustical Baffle - 2"


Fabric Wrapped Acoustical Baffles

Type 2

Construction: Two pieces of 7PCF glass fiber with square or radius edges with perforated vinyl or fabric.
Moutning: D-rings
Thickness: 1", 1-½", 2"

Models

Type 2 Acoustical Baffle - 1"
Type 2 Acoustical Baffle - 1-1/2"
Type 2 Acoustical Baffle - 2"

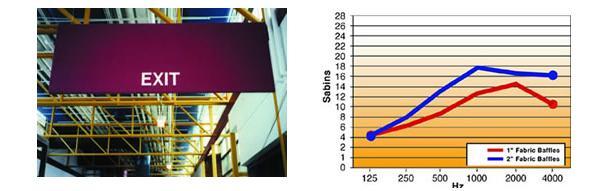

SABINS PER BAFFLE
Panel Type Thickness Finish Core Absorption (Sabins per 48" × 24" Unit)
125Hz 250Hz 500Hz 1000Hz 2000Hz 4000Hz SABINS
TYPE 1 1" Fabric Glass Fiber 4.55 6.20 8.42 12.83 14.35 14.28 10.45
TYPE 2 2" Fabric Glass Fiber 4.48 8.00 13.20 17.93 16.98 16.35 14.02


Fabric Wrapped Acoustical Baffles
