Overview



Echo Eliminator 8 lb. Composite™ Acoustical Wall Panels

Echo Eliminator 8 lb. Composite Acoustical Wall Panels

Acoustical Cotton Fiber Composite Panel – Sound Absorber & Blocker

  1. User Friendly
  2. No Fiberglass
  3. Economical
  4. Recycled Material
  5. Eligible for LEED Credits

8 lb. acoustical cotton fiber composite panels can be used as a sound blocker, sound absorber or noise barrier.

Product Specs


Material8 lb. Bonded Acoustical Cotton (B.A.C.). Recyclable, Fiberglass Free.

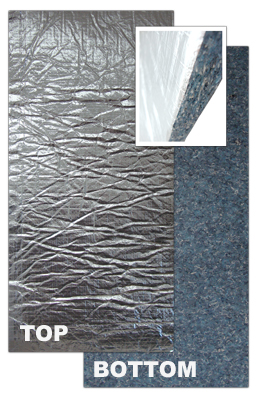

PatternSoft Textured Surface, Foil FRK one side.
FeaturesEconomical, Multi-Purpose, High Performance Absorption combined with STC value. Adhesively apply or hang as a baffle.
ApplicationsGymnasiums, Auditoriums, Classrooms, Music Rooms, Arenas & Stadiums, , Offices, Computer Rooms, Restaurants/Cafeterias, Residential, Concert Halls & Theaters, Pro Audio, Gun Ranges, Manufacturing Plants, Machine Enclosures, Water Treatment Plants.
Thickness1″
Size2' × 4'
ColorLight Blue, FRK on opposite side
Foil/Scrim12 micron Foil (0.00047 inch) – 6.5 × 12.5 Fiberglass Scrim – 20gsm PE


BAC Panel – Sound Absorption
Size
Mount
125Hz
250Hz
500Hz
1KHz
2KHz
4KHz
NRC
1″
A
.09
.24
.86
.98
.98
1.03
.75

BAC Panel – Sound Transmission Class
Size
125Hz
250Hz
500Hz
1KHz
2KHz
4KHz
STC
1″
12
12
14
13
20
29
17
