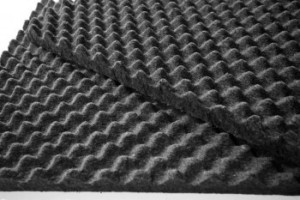

Echo Eliminator™ Cotton Soundwave Eggcrate Acoustical Panel

Echo Eliminator Cotton Soundwave Eggcrate Acoustical Panel

ASI is proud to introduce the market’s first recycled cotton, high acoustical performance studio wall panel. The Soundwave panel is made from 85% recycled cotton and is 100% recyclable.

  1. Recycled Cotton (Green Acoustical Material)
  2. Class A – Non-Flammable (Per ASTM E-84)
  3. Lightweight
  4. Easy to Install (adhesively applied)
  5. Impact Resistant
  6. Durable
  7. Low Cost
  8. Fiberglass Free
  9. No Formaldehyde – No VOC’S
  10. Hi-Performance Acoustical Absorption
  11. Proudly Made in the USA
  12. LEED Eligible (more information)

Product Specs


ApplicationsRecycled Cotton Soundwave panels are ideally suited for studios, school gymnasiums, cafeterias,
classrooms, churches, multi-purpose rooms, community centers and more.
Size2' X 4'
Thickness2″
ColorGraphite

Please note: Since these panels have a male/female pattern (convolute), each panel is slightly different on it’s edge pattern. Panels will not line up to make one large uniform pattern.

Although we take extensive precautions and purge the lines between colors, due to the manufacturing process color inconsistencies – including dye lot variations – flecks, specks, and other slight surface blemishes are unavoidable. Please call for details.

All sizes are nominal and are subject to manufacturing tolerances that may vary ± 1/8″ . Exact fitting may require on site adjustment by the purchaser. Exact size and other unavoidable variables such as dye lot color variances, lighting conditions, pattern matching, directional materials, expansion and contraction due to environmental conditions. Project with exacted visual requirements and expectation must be identified for our special attention prior to ordering.


Echo Eliminator Soundwave Panel – Sound Absorption Coefficients
Mount
125Hz
250Hz
500Hz
1KHz
2KHz
4KHz
NRC
2″ – 3lb./cf.A.35.941.321.221.061.031.15
