C - CIP - CIW Neoprene Housed Spring Mounts

C - CIP - CIW Neoprene Housed Spring Mounts

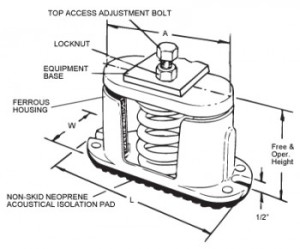

C Housed Spring Mounts may be used on outdoor applications. They have lateral stability and are recommended for moderate horizontal wind loads without seismic restraint requirements.

“C” one inch minimum deflection spring mounts provide greater vibration control than the lower deflection neoprene mounts. They function the same as SLF mounts but have semi-circular neoprene sponge inserts that limit movement due to start and stop and horizontal wind load. These inserts prevent contact between the projections of the upper and lower semi-circular casting. C spring mounts are recommended for all air-conditioning applications, under compressors, air handling units, centrifugal fans and most other constant frequency vibration problems.

“C” two inch deflection spring mounts are for use on equipment located on wide upper level building spans and roofs where more than one inch of deflection is needed to cancel the effect of the building spans deflection.
