Overview



Acoustical Ceiling Tiles

Acoustical Ceiling Tiles

SOUND SILENCER

  • Class A Fire Retardan
  • No Fiberglass – Non-Fibrous
  • Moisture Resistant – Indoor-Outdoor
  • Impact Resistant
  • Lightweight Ceiling Tiles

When soundproofing is essential for noise and sound control, Sound Silencer soundproofing ceilings and acoustical ceiling tiles provide the control you expect. Large noisy areas, such as gymnasiums and work floors can now be effectively managed with soundproof ceilings and acoustical wall panels.

MATERIAL: Semi Rigid Porous Expanded Polypropylene Acoustical Bead Foam (P.E.P.P.).
PATTERN: Non-Abrasive, Slightly Textured, Porous
FEATURES: Lightweight, Impact Resistant, Moisture, Bacteria & Fungi Resistant, Tackable Surface

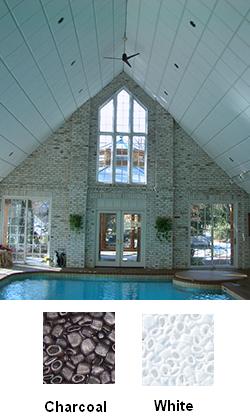

APPLICATIONS: Gymnasiums, Auditoriums, Classrooms, Swimming Pools, Ice Arenas, Clean Rooms, Food Processing Plants, Food Prep Areas, Cafeterias & Restaurants, Manufacturing Plants, Car Washes, Rooftop and Machine Enclosures, Gun Ranges, Dog Kennels, Locker Rooms.
THICKNESS: 1" & 2"
SIZES: Exact Cut: 24" × 24", 24" × 48"
Nominal: 23¾" × 23¾", 23¾" × 47¾"
Custom Sizes Available – Maximum Panel Size: 25" × 49"
COLOR: White, Charcoal
FLAMMABILITY: ASTM E84, Class A. 1" – Flame Spread: 3,Smoke Developed: 84.
2" – Flame Spread: 5, Smoke Developed: 11 3
INSTALLATION: Glue up direct or as a lay-in tile in a suspended t-bar grid system.
WEIGHT: 1" – .25lbs/Sq ft; 2" – .45lbs/Sq ft

*Note to all installers
Sound Silencer PEPP is a thermal molded product and, although tough to see, one side of the panel will have injection and mold release marks. These are circular marks that range in size and indent depth. These marks denote the back side of the panel, so panels should be installed with these marks facing the wall or ceiling for best possible aesthetical outcome.

Models

Sound Silencer Acoustical Ceiling Tile - 24×24 - 1"
Sound Silencer Acoustical Ceiling Tile - 24×48 - 1"
Sound Silencer Acoustical Ceiling Tile - 24×24 - 2"
Sound Silencer Acoustical Ceiling Tile - 24×48 - 2"


Sound Silencer Acoustic Ceiling Tiles – Sound Absorption/Noise Reduction
Tested Using Type E400 Ceiling Mounting
Thickness 125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
1"0.460.590.420.490.760.860.55
2"0.510.520.520.770.890.980.70


Sound Silencer Acoustic Ceiling Tiles – Sound Transmission Loss (STC)
Thickness 125Hz 250Hz 500Hz 1KHz 2.5KHz 5KHz STC
1"657810159
2"981010172213
1" w/ 5/8" Gypsum
Both Sides
27272931324532
