Absorptive/Noise Barrier Quilted CurtainsQUILTED CURTAIN S.T.O.P.- For Unusual Conditions
- Cost Effective
- Water & Chemical Resistant
- Exterior Applications
MATERIAL: Foam or fiberglass core, faced with quilted aluminized fabric.
PATTERN: Quilted pattern
FEATURES: Effective and durable absorber with mass loaded vinyl barrier option.
APPLICATIONS: Effective solution to a wide range of unusual problems. Machinery and work area enclosures.
THICKNESS: 1", 2"
SIZES: BSC-25 Curtain (Quilting on Both Sides) – Standard: 48" Wide and Lengths up to 25'
BBC-13 Curtain (Quilting on One Side – Standard: 54" Wide and Lengths up to 25'
Custom sizes also available.

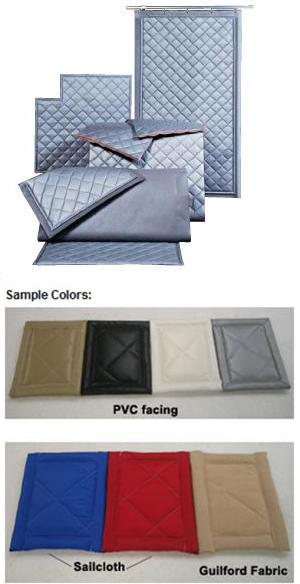

COLOR: Standard PVC Facing – Silver
Optional PVC facing – Black, Beige, White
Sailcloth Colors
Guilford Fabric Colors
FLAMMABILITY: ASTM E84, Class A. Flame Spread: 23; Smoke Developed: 30
INSTALLATION: Hook and loop fasteners, grommet hangers, curtain spanport hardware.
GROMMETS: Standard Brass. (Stainless steel upgrade available upon request) ID: 9/16" Grommet Center 1 ¼" down from top of panel
| CURTAIN S.T.O.P. – Sound Transmission Loss – ASTM E90 |
| Frequency |
125Hz |
250Hz |
500Hz |
1KHz |
2KHz |
4KHz |
STC |
| BSC-25 w/ 1lb. Barrier |
12 | 10 |
27 | 40 |
44 | 43 |
29 |
| BSC-25 w/ 2lb. Barrier |
19 |
22 |
28 |
40 |
56 |
61 |
33 |
| BBC-13 w/ 1lb. Barrier |
11 |
10 |
24 |
30 |
35 |
35 |
27 |
| BBC-13 w/ 2lb. Barrier |
19 |
22 |
28 |
40 |
56 |
61 |
33 |
| CURTAIN S.T.O.P.: Sound Absorption Coefficients | | Frequency | 125Hz | 250Hz | 500Hz | 1KHz | 2KHz | 4KHz | NRC | | 1" Fiberglass | 0.12 | 0.47 | 0.85 | 0.84 | 0.64 | 0.62 | 0.70 | | 2" Fiberglass | 0.19 | 0.99 | 0.96 | 0.80 | 0.57 | 0.33 | 0.85 |
