Teragren Bamboo Plywood Panels + Veneer

Teragren's Strand and Traditional bamboo plywood panels and veneer are manufactured with Optimum 5.5® Moso bamboo harvested sustainably between 5-1/2 and 6 years to ensure optimum performance. These bamboo panels machine nicely, finish cleanly and offer a wide variety of grains to complement any décor or project.

• Strand plywood panels are made with Xcora™ technology for greater hardness (154% harder than oak), durability and stability.
• Traditional plywood panels average 25% harder than red oak
• Comply with the California Special Environmental Requirements Specification 01350, which is designed to ensure health through good indoor air quality and is also the United States' most stringent indoor air quality standard.
• Conform to the Collaborative for High Performance Schools (CHPS) IEQ 2.2 and CA Section 01350 Classroom Scenario and are Indoor Air Quality certified (Registration SCS.IAQ-01879).
• Furniture-grade, sanded to 180 grit all 4 sides (S4S)
• Consistent in coloration
• Select plywood panels and veneer available FSC-certified by special order

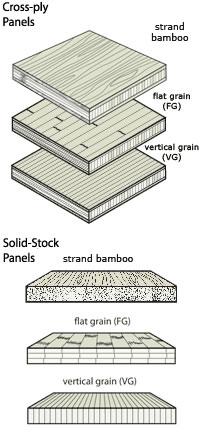

Strand Bamboo Plywood Panels with Xcora™ technology

Dimensions
4' X 6' X 3/4" cross-ply [1828mm x 1220mm x 19mm]
NAF vertical grain core
4' X 6' X 1/4" solid-stock [1828mm x 1220mm x 6.35mm]
4' X 6' X 1/8" solid-stock [1828mm x 1220mm x 3.175mm]

Colors
Chestnut, Java, Brindle, Wheat

Manufacturing Adhesive
NAUF [No-added-urea-formaldehyde]

Teragren's proprietary manufacturing adhesive emits less formaldehyde than allowed by U.S. OSHA, European E0, CARB Phase 1 and CARB Phase 2, and Japanese JIS/JAS emissions standards.

Traditional Bamboo Plywood Panels

Dimensions
1' x 8' x 13/16" solid-stock [305mm x 2440mm x 20.64mm]
4' x 8' x 3/4" cross-ply [1232mm x 2452mm x 3.3mm]
4' x 8' x 3/4" solid-stock [1232mm x 2452mm x 3.3mm]
4' x 8' x 1/2" cross-ply [1232mm x 2452mm x 12.7mm]
4' x 8' x 1/4" solid-stock [1232mm x 2452mm x 6.35mm]
4' x 8' x 1/4" cross-ply [1232mm x 2452mm x 6.35mm]

Colors/Grains
Vertical Grain Caramelized
Vertical Grain Natural
Flat grain Caramelized
Flat Grain Natural

Manufacturing Adhesive
Teragren's proprietary manufacturing adhesive emits less formaldehyde than allowed by U.S. OSHA, European E0, CARB Phase 1 and CARB Phase 2, and Japanese JIS/JAS emissions standards.
- Available NAF (no-added formaldehyde)
- Available FSC-certified by special order

LEED® Credits
MR 6, MR 7 (special order), IEQ 4.4 (specifiy NAF panels)

Traditional Bamboo Veneer

Dimensions
Paper fleece backing:
49.21" x 98.42" x 1/42" [2500 x 1250 x .6mm]
2-ply "wood on wood" with paper fleece backing in center:
49.21" x 98.42" x 1/21" [2500mm x 1250mm x 1.2mm]
5-ply cross-ply veneer (no backing):
49.21” x 98.42” x 1/8” (2500mm x 1250mm x 3.30mm]

Manufacturing Adhesive
NAF [No-Added-Formaldehyde]

LEED® Credits
MR 6, MR 7 (special order), IEQ 4.4

Veneer Edge banding
7/8" x 500' x 1/42" rolls [152400mm x 22.22mm x .6mm]

Teragren
12715 Miller Road NE, Suite 301
Bainbridge Island, WA 98110
Tel: (206) 842-9477
Fax: (206) 842-9456
Toll free: (800) 929-6333
Email: info@teragren.com
Web site: http://www.teragren.com
