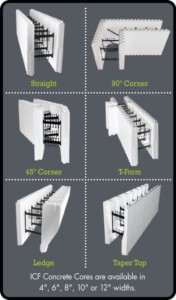

Insulating Concrete FormsReward Wall Systems offers the most innovative ICFs in the industry with our iForm product line. When compared to a conventionally built wall, Reward ICFs produce a stronger concrete wall, tighter building envelope and a more efficient 5 in 1 wall system. With Reward Wall Systems ICFs you can complete the - structural wall- insulation - air barrier - vapor retarder - furring All in one step Reward ICFs come in 6 form configurations and 5 widths

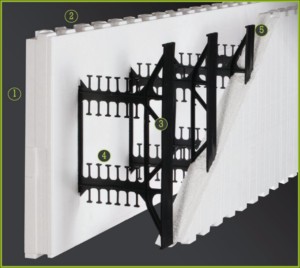

Anatomy of Reward ICFs1. Material – 2 ½ " EPS foam panel with a high density foam at 1.5 lbs per cu. foot for stronger formwork performance. Raised and indented vertical and horizontal ladder lines allow for easy identification of tie locations for attachments and serve as 1" cut lines. 2. Universal – No top or bottom, no right side or wrong end — even corners work as either left or right. 1" open tooth design greatly reduces dirt, debris and concrete in between teeth, while allowing for secure stacking and a tighter fit. 3. Strong – Eight horizontally spaced vertical ties, placed 6" on center, and enhanced corner ties provide unmatched strength during the concrete pour. The 6" spacing and the symmetrically placed double crossbars provide up to 50% more support of the EPS foam panel, eliminating pillowing. 4. Easy – Snap-in rebar chairs let you place horizontal rebar in multiple positions and accommodate two pieces of horizontal rebar or overlapping ends. Eliminates the strain placed on wall because of improperly bent or crooked rebar. 5. Ties – The eight ties not only run the full height of the block for maximum strength, they serve as furring strips that are 1¼ " wide and recessed a full ½ " for faster application of TAFS and other finishes. These products are covered by U.S. Patent #6,820,384

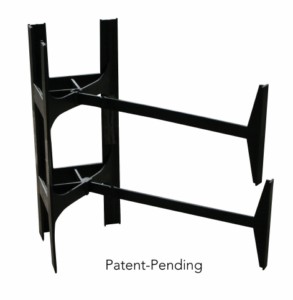

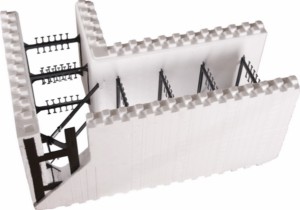

Highest Performing ICF CornerOur one of a kind double “H” bridging corner bracket has been the highest performing ICF corner since we introduced it 3 years ago. Double H-Bracket DesignUnique H-bracket gives a horizontal connector for more fastening points and increased strength. Ties are double stacked allowing for block to be cut in half and reused.
Bridging This design provides superior support during concrete pours, eliminating the possibility of blowouts. Full Height Fastening StripsFull height, continuous furring on the corner’s edge creates MORE attachment points and provides easy attachment of finishes. Reward Wall Systems, Inc. |
