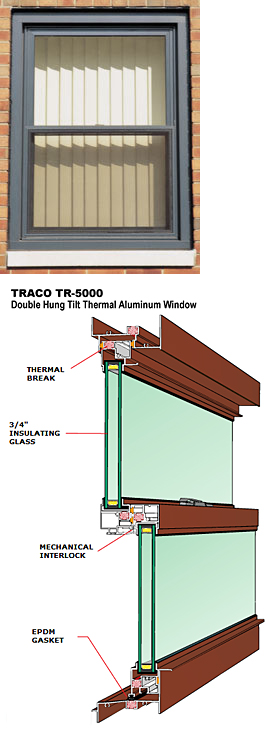

TR-5000 (H-C45) Double Hung Tilt Commercial Thermal Aluminum Window TR-7100 Fixed

Benefits Operation Ease

Operating sash tilt in for glass cleaning from interior Pivot bars are spring-loaded for sash removal without tools Tilt latches are spring-loaded for automatic engagemen

Versatility

Optional flange frame eliminates the need for separate panning Optional continuous head and sill deletes separate vertical mullions Optional self-mulling jambs permit horizontal ribbons of windows

Standards

3/4" insulating glass Meeting rail locks; AAMA Class 2 spiral balances Spring-loaded tilt latches (specify slot or finger button)

Options

Single glazed (maximum 1/4") in thermal or non-thermal sash AAMA Class 2 block & tackle balances Self-mulling jambs; flange frame; prime (nailing fin) frame Continuous head and sill in multiple- window master frame Three-lite window (one top fixed and two operating sash - all in one frame) Oriel (unequal) sash (specify sill-to-CMR dimension) Full protection, half insect, or full insect exterior screens Exterior or internal muntins

TRACO
71 Progress Avenue
Cranberry Township, PA 16066
Toll-Free: (800) 837-7002
Fax: (724) 776-7014
E-mail: archservices@traco.com
Web site: http://www.traco.com
