Poligon's Neo Classic line of shelters faithfully replicates the look of antiquity with modern materials. Steel frames are enveloped with formed steel and fiberglass components, fashioned with great attention to authentic detailing, to create this traditional look.
The Tuscan style columns on Neo Classic shelters have gently tapering shafts with both upper capitals and lower plinth blocks. Custom-molded, field painted fiberglass wraps surround a steel column beneath. The overhead cornice and entablature are formed from heavy gauge powder coated steel sheeting, manufactured for easy bolt-together assembly in the field. The steel structure, steel overhead elements, and fiberglass column wraps are all fire resistant, with class "A" fire-rated resins used in the column construction.
The structural insulated panel (SIP) roof panel system used on all Poligon Neo Classic shelters makes for quick installation, an attractive interior surface and an ideal substrate for a variety of roofing options.

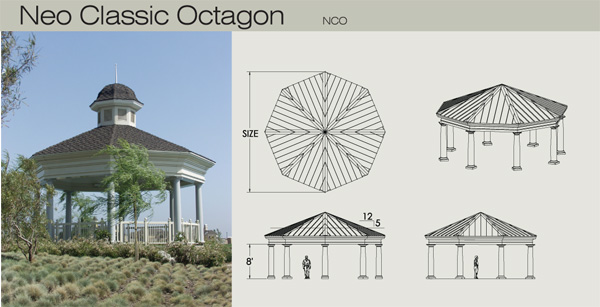

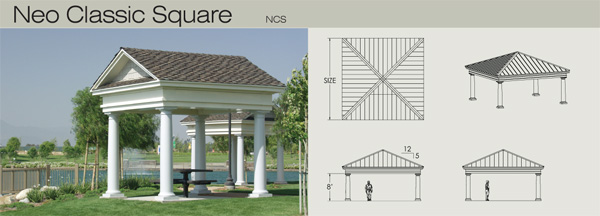

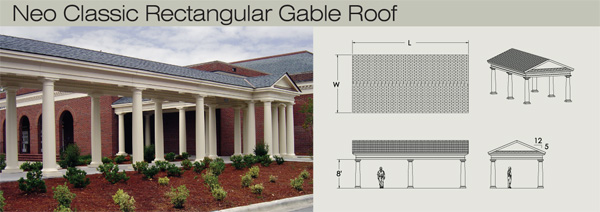

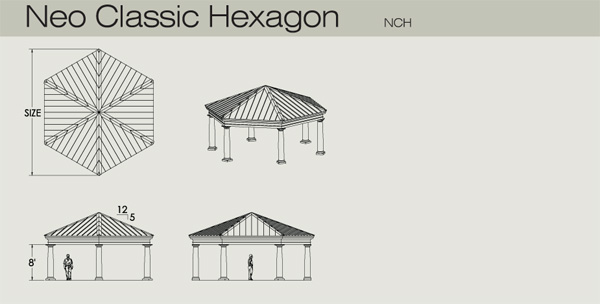

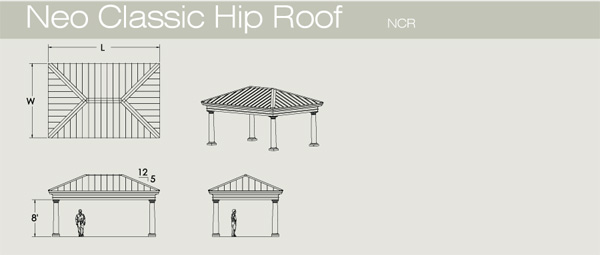

The Neo Classic series are available in Octagon, Hexagon, Square, Rectangle, and walkway layouts.
Standard Sizes Available: 16,20,24,30
Roof Pitch: 5:12
Standard Sizes Available: 16x24, 16x32, 20x24, 20x32, 24x28, 24x32
Roof Pitch: 5:12
Standard Sizes Available: 16x24, 16x32, 20x24, 20x32, 24x28, 24x32
Roof Pitch: 5:12
Standard Sizes Available: 16, 20, 24, 28, 32, 36, 40
Roof Pitch: 5:12
Standard Sizes Available: 16, 20, 24, 28, 32, 36, 40
Roof Pitch: 5:12
- Standing Seam metal roofing with available in Kynar colors provides an excellent finish appearance with no exposed fasteners.
- Shingles over SIP (Structural insulated panel) roof deck provides an excellent option when an insulation system is needed in addition to making it a quieter and cooler roof.
- Roof deck options under steel roof panels may include the SIP panel or 2x6 tongue and groove pine all available from one source. Poligon.
